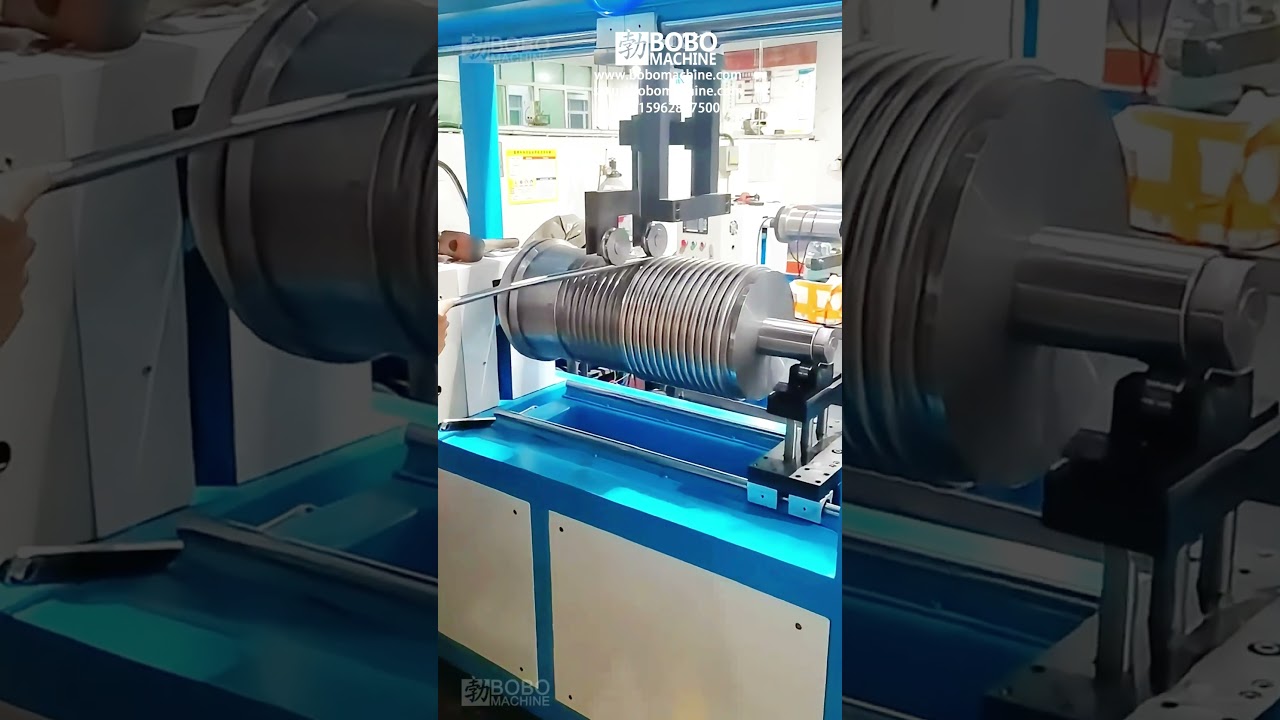

Spiral Pipe Bending Rolling Machine Heat Exchange Copper Pipe Coiling Machine Send to Italy

The machine tool is mainly composed of a mechanical system and an electrical control system. Reasonable structure and stable performance. It can be used for cold forming of metal profiles, with high precision, stable forming, simple operation and high production efficiency!

⭐Configuration

Term	Brand
Control	Button
PLC	Delta
Servo motor	Delta
Driver	Delta
Rolling reducer	Wannan

⭐Details

⭐Products

⭐Main technical parameters

Item	Unite	Data
Max bending capacity	mm	￠16*1.2 (Or
		Customized)
Min roll bending diameter	mm	≧Diameter 3D
Rolling speed	mm/Min	300mm
Motor power	KW	2.2
Air pressure	Mpa	0.45
Max coil OD	mm	350
Max coil height	mm	650
Voltage	V	Customized
Dimension	mm	1500*800*1200
