Pipe Rolling Machine Applications and Benefits in Modern Manufacturing

A pipe rolling machine bends and shapes metal pipes or tubes into precise curves, rings, or cylindrical forms through controlled pressure and rotation. It uses three adjustable rollers—powered by mechanical, hydraulic, or electric systems—to form consistent radii without deforming the metal.

Construction, automotive, shipbuilding, and manufacturing industries depend on these machines. Accurate pipe curvature improves fit, strength, and overall efficiency.

Engineers and metal fabricators use pipe rolling machines for materials like stainless steel, aluminum, and carbon steel. These machines handle diameters from 10 mm up to over 300 mm.

Engineers and metal fabricators use pipe rolling machines for materials like stainless steel, aluminum, and carbon steel. These machines handle diameters from 10 mm up to over 300 mm.

What Is a Pipe Rolling Machine?

A pipe rolling machine bends or forms metal pipes into circular, curved, or conical shapes with consistent precision. Controlled mechanical force shapes materials like carbon steel, stainless steel, and aluminum without damaging their internal structure.

Design, capacity, and automation levels vary. All types rely on accurate roll positioning, power transmission, and lubrication to maintain dimensional accuracy and surface quality.

Definition and Function

A pipe rolling machine shapes metal pipes or tubes by passing them through rotating rolls. The rolls apply uniform pressure to curve the material to a set radius—usually from 50 mm to 2,000 mm.

Most machines use three-roll bending or pyramid-style configurations. Two lower rolls support the pipe, while the upper roll applies downward force.

Synchronized roll rotation feeds the pipe smoothly through the system for even deformation.

Machines rated for pipe diameters up to 600 mm and wall thicknesses up to 20 mm are common in construction and manufacturing.

The controlled rolling process preserves the material’s grain structure, resulting in consistent tensile strength across the bend.

Types of Pipe Rolling Machines

Pipe rolling machines come in several categories based on drive system and control method.

Manual machines use hand-operated wheels and suit small-diameter pipes under 50 mm. Hydraulic models rely on pressurized oil systems delivering forces up to 120 kN, bending thicker materials accurately.

CNC-controlled machines use servo motors and digital encoders to adjust roll positions within ±0.1 mm. This precision makes them popular in aerospace and automotive projects.

Manual units cost less and are easier to maintain but offer limited accuracy. Hydraulic and CNC machines boost productivity and repeatability, though they need more energy and complex calibration.

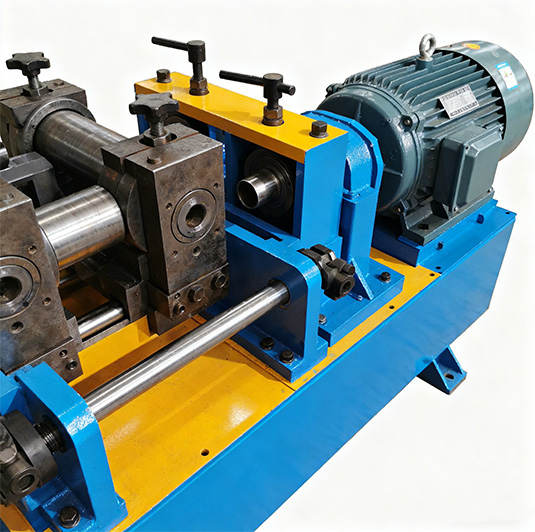

Key Components

A typical pipe rolling machine includes three primary rolls, a frame, a drive system, and a lubrication circuit.

The rolls, made from AISI 4140 alloy steel with surface hardness 50–55 HRC, resist wear during heavy use. The frame, usually from Q235 structural steel, keeps everything stable against bending forces.

Drive systems use AC induction motors rated between 2.2 kW and 15 kW, depending on pipe size. These motors transfer torque through helical gear reducers for smooth, low-vibration rotation.

Friction between rolls and pipe can reach a 0.3 coefficient, so a lubrication system sprays oil at 0.5–1.0 L/min to cut wear and extend roll life.

Control panels feature digital radius displays and emergency stop circuits compliant with ISO 13849-1. The materials and specs of each part influence rolling accuracy, surface finish, and long-term reliability.

How Pipe Rolling Machines Work

Pipe rolling machines shape metal tubes by applying controlled pressure with rotating rollers. Mechanical precision, automated systems, and digital feedback maintain consistent dimensions and surface quality during production.

This setup allows continuous operation for carbon steel, stainless steel, aluminum, and copper pipes in structural and industrial jobs.

Rolling Process Overview

A pipe rolling machine bends a flat metal strip into a cylindrical or curved shape. It uses three or more rollers in a triangular or linear setup.

Each roller applies force at a specific point, creating uniform curvature and wall thickness.

Rolling pressure usually ranges from 50 to 250 kN. Machines working with carbon steel (A106 Grade B) need more torque than those handling aluminum alloy 6061-T6 due to the difference in yield strength—240 MPa vs. 95 MPa.

Rollers are often made from AISI 52100 bearing steel with Rockwell hardness of 60–62 HRC for wear resistance. Precise roller contact keeps ovality under ±0.5 mm for pipes up to 150 mm in diameter.

This process works well for structural tubing, handrails, and fluid transport lines. Tight curvature increases machine load and can shorten roller lifespan, so periodic calibration is key.

Automation and Controls

Modern pipe rolling machines use PLC-based control systems to automate roller positioning, feed rate, and pressure. Servo motors rated between 1.5 and 7.5 kW adjust roller gaps with ±0.02 mm accuracy.

Operators get consistent bends without manual readjustment.

Machines often feature digital length control using optical encoders with 0.001 m resolution. Automated cutoffs use pneumatic or hydraulic shears.

The control interface supports CAN bus communication, syncing with decoilers and downstream cutting systems.

Automation cuts production time by about 25–35% over manual setups. However, more sensors and actuators mean more maintenance, especially in high-humidity environments exceeding 80% RH. Electrical components need proper sealing (IP55 rating) to avoid corrosion.

Precision and Tolerances

Dimensional accuracy matters in pipe rolling. Machines achieve roundness tolerances of ±0.3 mm and length tolerances of ±1.0 mm for pipes up to 6 meters long.

Roller shafts use tapered roller bearings with a 120 kN load rating to prevent deflection under pressure.

Precise roller geometry keeps pipe uniformity high. Machines need calibration after every 500 operating hours using laser alignment tools.

Temperature impacts tolerance too. Above 40°C, thermal expansion in steel rollers can increase pipe diameter by 0.1–0.2 mm, so cooling systems keep rollers near 25°C.

Automotive exhaust systems and hydraulic tubing need this level of precision for leak-free joints and smooth flow. Achieving these tolerances means adjusting roller hardness, feed speed, and applied pressure—a balancing act for every production run.

Applications of Pipe Rolling Machines

Pipe rolling machines shape metal pipes for industrial systems, construction frameworks, and energy transport networks. Their ability to form steel, aluminum, and copper into precise diameters supports consistent production standards and reliable structural performance.

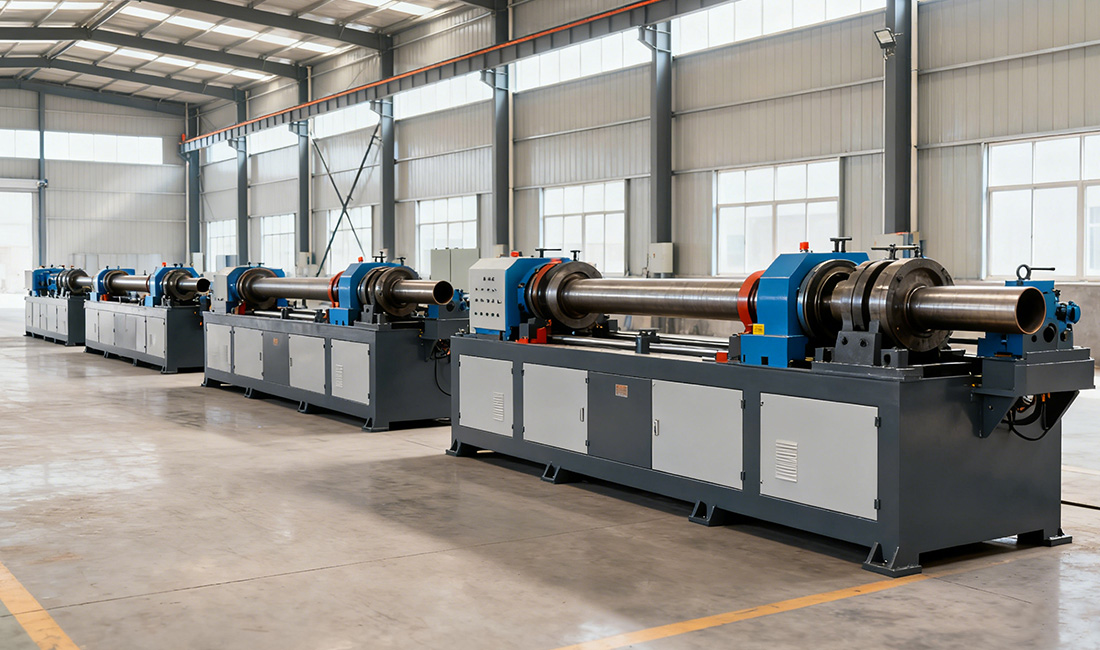

Industrial Manufacturing

In manufacturing, pipe rolling machines produce tubes with diameters from 10 mm to 1,200 mm. They hold a tolerance of ±0.2 mm for compatibility with automated assembly lines.

Three-roll or four-roll configurations apply uniform pressure, preventing surface deformation and keeping wall thickness steady.

Most machines use carbon steel (AISI 1020) or stainless steel (AISI 304) rollers for wear resistance. Line speeds run from 15–60 meters per minute, depending on pipe thickness and alloy.

Hydraulic or electric drive systems deliver torque between 1,000 and 3,500 N·m. This torque shapes high-tensile materials without cracking.

Manufacturers use these machines for boiler tubes, conveyor rollers, and structural tubing. High torque settings boost forming power but also raise energy consumption, which can limit efficiency in lighter jobs.

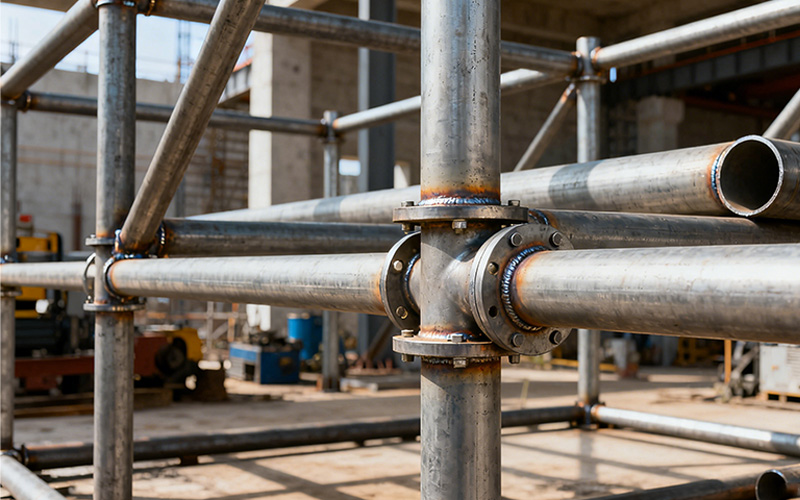

Construction and Infrastructure

Construction teams use pipe rolling machines to form handrails, trusses, and support columns. Materials like galvanized steel (grade S275) and aluminum alloy 6061-T6 provide yield strengths of 275 MPa and 240 MPa.

Machines here often include CNC-controlled bending systems with angular precision of ±0.1°. This control ensures accurate fitment during assembly.

Bending radii usually range from 100 mm to 2,000 mm, depending on section size.

Systems operate in temperatures from -10°C to 45°C, making them reliable for outdoor fabrication. For thicker sections, rolling speed drops to about 10 meters per minute, trading speed for higher forming pressure and accuracy.

Oil and Gas Sector

Pipe rolling machines in oil and gas build high-pressure pipelines with wall thicknesses of 6 mm to 25 mm. They use Electric Resistance Welding (ERW) or Submerged Arc Welding (SAW) to join steel coils into continuous pipe up to 12 meters long.

These methods keep welds strong under pressures exceeding 15 MPa—vital for fluid transport.

Machines often work with API 5L Grade X65 or X70 steel, which offers tensile strengths of 570–760 MPa. This strength keeps pipelines safe in temperatures from -40°C to 120°C.

Rollers made from chromium-molybdenum alloy (AISI 4140) resist fatigue from repeated forming.

Integrated ultrasonic testing units detect weld flaws smaller than 0.5 mm. These systems help meet ISO 3183 pipeline standards.

Output is slower—typically 5–8 meters per minute—because of frequent quality checks and thicker materials.

Choosing the Right Pipe Rolling Machine

Selecting a pipe rolling machine depends on load capacity, pipe diameter range, and material hardness. The right match ensures consistent pipe geometry, less tool wear, and stable production rates.

Capacity and Size Considerations

Rolling capacity defines the maximum pipe diameter and wall thickness a machine can handle. Most models support diameters from 12 mm to 150 mm and wall thicknesses up to 8 mm.

Going beyond these limits causes roller deflection and dimensional errors.

Frame rigidity matters, too. Machines built from ASTM A36 structural steel resist deformation under loads over 20 kN, keeping upper and lower rollers aligned.

Adjustable roller spacing—controlled by hydraulic or screw-driven systems—allows fine-tuning. A hydraulic system running at 10–16 MPa smooths adjustment under load and reduces setup time by up to 25%.

Compact bench-top models suit small-diameter tubing. Floor-mounted units handle industrial-scale pipe fabrication.

Material Compatibility

Different pipe materials need specific roller materials and surface treatments.

Carbon steel pipes (A106 Grade B) do best with 4140 alloy steel rollers hardened to HRC 55–60. Aluminum or copper pipes work better with polyurethane-coated rollers to avoid surface marring.

Material hardness affects rolling pressure. A pipe with 200 HB Brinell hardness needs about 1.5 times the rolling force of a pipe at 120 HB.

Machines with torque-limited drives (say, 300 N·m) prevent overload during tough jobs.

Temperature tolerance matters as well. Rollers built for up to 80°C keep friction coefficients steady, stopping slippage when forming stainless steel pipes for thermal systems.

Matching roller hardness and coating to the pipe material extends roller life and improves finish quality.

Production Volume Requirements

Production scale influences drive and automation needs.

Manual rolling machines with hand cranks or 4:1 gear ratios suit low-volume shops—under 20 pipes per day. Operators get precise control, but output is slow.

Medium-scale operations use electric-drive systems with 1.5–3.0 kW induction motors. These keep pipe roundness within ±0.5 mm and often include digital roller position displays for repeatability.

High-volume facilities need CNC-controlled hydraulic rolling machines. These run continuously over 8-hour shifts, with programmable feed rates (5–15 mm/s) and automatic diameter calibration.

Feedback sensors keep pressure constant, minimizing wall thickness variation and cutting material waste by up to 10%.

Pipe Rolling Machine Operation and Safety

A pipe rolling machine bends or shapes metal pipes into precise cylindrical or conical forms using controlled mechanical pressure. Safe operation depends on correct setup, accurate calibration, and regular maintenance to prevent errors and workplace injuries.

Setup and Calibration

Operators place the machine on a level surface with less than 0.5° tilt. This step helps keep pressure even across all rollers.

Each roller needs to align within ±0.2 mm of the centerline. That keeps roundness tolerance below 1.5% of the pipe diameter.

Before starting, technicians check the hydraulic system pressure. The pressure should stay between 12 and 18 MPa, depending on pipe thickness and material grade.

AISI 304 stainless steel pipes demand higher pressure than 6061-T6 aluminum because of the difference in yield strength.

Calibration means adjusting the feed speed (usually 2–6 m/min) and roller gap to match the pipe wall thickness. If calibration goes wrong, ovality or surface cracks often show up.

Operators use digital displacement sensors with 0.01 mm resolution to measure roller travel. With the right setup, the process keeps curvature consistent and scrap rates under 3%.

Operator Safety Procedures

Operators gear up with ANSI Z87.1-rated eye protection, EN 388 level 4 gloves, and steel-toe footwear. These steps help prevent injuries from flying metal or slips.

Machines running rotating rollers at 30–60 rpm need a minimum 1.2-meter safety zone around them.

Testing emergency stop buttons daily is a must. Each button should halt roller motion within 0.8 seconds—even under full load.

Rollers can push with over 50 kN of force, so never reach between them while the machine runs.

Photoelectric sensors connect to safety interlocks and stop rollers if anything blocks the path within 200 mm. The system cuts hydraulic power instantly, dropping residual pressure to below 0.5 MPa.

Routine safety checks help keep everything in line with ISO 12100 machine safety standards.

Maintenance Practices

Routine maintenance keeps machines running longer and prevents misalignment. Bearings in the roller assembly get NLGI Grade 2 lithium-based grease every 100 operating hours.

Change out hydraulic oil—usually ISO VG 46—every 1,000 hours. That keeps viscosity stable and prevents overheating above 70°C.

Technicians use a surface roughness tester to check rollers. Surface roughness should stay below Ra 0.8 µm to avoid pipe marks. If wear goes past this, re-grind or replace the rollers.

Check electrical parts like motor drives rated at IP54 for insulation resistance above 1 MΩ. Dust and metal shavings can cause shorts, so keep enclosures sealed and clean them weekly.

Proper maintenance helps keep dimensional accuracy within ±0.3 mm and cuts downtime from failures.

Technological Advancements in Pipe Rolling Machines

Modern machines bring in automation, tight control, and energy-saving features. These upgrades boost production speed and cut down on wasted material.

Manufacturers can now hit tighter tolerances, lower costs, and improve process consistency.

Automation and Smart Features

Most machines now use CNC (Computer Numerical Control) systems with ±0.02 mm positioning accuracy. Operators can program different pipe sizes and wall thicknesses without manual tweaks.

CNC systems adjust for roll wear automatically, so pipe geometry and surface finish stay consistent.

Servo-driven rollers, often 1.5–3.0 kW per axis, let the machine control speed and pressure separately. This setup makes transitions between rolling stages smooth and reduces deformation errors by up to 15% compared to hydraulic-only machines.

CAN bus communication synchronizes all motion axes, which cuts down on vibration and boosts repeatability.

Many machines come with touchscreen HMIs and can store up to 100 preset programs. Operators tweak feed rate, temperature, and pressure profiles right from the control panel.

Sensors for torque and temperature monitoring help spot overloads early, protecting the rollers and shrinking downtime.

Automated lines connect machines to Manufacturing Execution Systems (MES) via Ethernet/IP. This setup allows data logging, remote diagnostics, and predictive maintenance, stretching service intervals from 500 to 750 operating hours.

Energy Efficiency Improvements

Energy optimization centers on hydraulic and motor systems. Variable-frequency drives (VFDs) cut motor energy use by 20–30% by matching speed to load. When motors only run as needed, less heat builds up and parts last longer.

Hydraulic circuits use load-sensing pumps rated for 250 bar. These pumps adjust flow to keep pressure steady and avoid wasting energy.

Air-to-oil heat exchangers with 85% thermal efficiency keep oil between 35°C and 45°C, which stabilizes rolling pressure and viscosity.

Some models include regenerative braking that recovers energy during deceleration and stores it for the next cycle. This feature drops total power demand by about 8% per batch.

Insulation around the rolling chamber cuts heat loss by up to 12%, especially during hot rolling at 900°C. Less heat escapes, so keeping the right temperature takes less energy and the process stays more consistent.

Cost Factors and Investment Considerations

Buying a pipe rolling machine means thinking through the purchase price, operating costs, and payback period. Each factor has a direct impact on production efficiency and long-term profits.

Initial Purchase Price

The purchase price depends on capacity, automation, and material handling range. Machines for pipes between 25 mm and 300 mm are pricier because they need higher torque motors (15–45 kW) and reinforced alloy frames.

Fully automatic PLC-controlled machines with servo-driven rollers usually run between $80,000 and $250,000. Semi-automatic models cost $40,000 to $90,000.

Automation boosts wall thickness precision to ±0.05 mm by constantly adjusting roller pressure.

Shipping, installation, and training tack on another 10–15%. Machines built with AISI 1045 steel frames and chromium-plated rolls (HRC 60–62) last longer, cutting replacement needs. These materials resist deformation and keep alignment under loads up to 50 kN.

Operational Costs

Operating costs cover electricity, maintenance, lubrication, and labor. A 30 kW cold rolling machine running 8 hours a day at 80% load uses about 192 kWh daily, which costs around $25 per day at $0.13/kWh.

Work rolls need replacing every 3–6 months. Each set costs $1,000–$3,000. Forged tool steel (SKD11) rolls last 20% longer thanks to their 12% chromium content.

Lubricant use averages 0.5 liters per hour. Synthetic oil with ISO VG 68 keeps the surface finish up to par.

Labor costs drop when automation lets one operator run two machines with automatic feeding and discharge. That setup can cut labor expenses by nearly 40% compared to manual lines.

Return on Investment

A machine pushing out 1.5 tons of pipe per hour at a $150 per ton margin brings in $1,800 per day gross profit over an 8-hour shift.

With a $150,000 investment, payback lands at about 3–4 months if demand stays steady.

Energy-efficient motors (IE3 class) lower power use by about 8%. Automated thickness control trims scrap by up to 5%.

Higher automation reduces manual tweaks and cuts downtime by 10–15%, which keeps throughput steady. Over a 5–10 year machine life, these savings really add up.

Leading Pipe Rolling Machine Manufacturers

Several established manufacturers offer pipe rolling machines with high precision, verified standards, and industrial-grade materials. These companies design machines with controlled torque, hydraulic systems, and digital interfaces to keep bending diameters and rolling tolerances consistent.

Woodward Fab in the US makes manual and hydraulic tube rollers that handle pipes up to 76 mm (3 in.) diameter. The machines use AISI 1045 steel shafts, which deliver steady pressure for uniform curves in mild steel and aluminum tubes.

Parmigiani from Italy adds hydraulic control and ±0.2 mm rolling tolerance. The PLANET model’s calibrating roll stabilizes bending diameter over long pipe sections. Hydraulic guide rolls keep pressure even during rolling.

K K Industries in Pune, India, builds electrically driven machines with three-roll bending mechanisms and motor capacities from 2.2 to 7.5 kW. Each roll gets its own motor, so the machines can shape pipes up to 6 mm wall thickness—a plus for industrial ducts and structural tubing.

Manufacturer	Country	Key Feature	Max Pipe Diameter	Control Type
Woodward Fab	USA	1045 steel shafts	76 mm	Manual / Hydraulic
Parmigiani	Italy	Calibrating roll system	120 mm	Hydraulic
K K Industries	India	Three-roll drive	100 mm	Electric

Future Trends in Pipe Rolling Technology

Pipe rolling machines are moving toward automation, AI-driven control, and digital connectivity. These features will hook into Industry 4.0 networks for real-time tweaks and predictive maintenance.

Next-gen machines should hit ±0.05 mm dimensional precision and Ra 0.8 µm or better surface roughness. Sensors will keep tabs on torque, pressure, and roll gap, so wall thickness stays steady and scrap rates drop by up to 15%.

Manufacturers are shifting to AISI 4140 alloy steel and 316L stainless for rolls, thanks to hardness (up to 60 HRC) and corrosion resistance. These materials extend life by 20–25% in humid settings. Frames often use Q235B structural steel for stable rigidity under loads over 200 kN.

Designs now favor 3-roll and 4-roll setups with CNC synchronization. Each roll runs on its own servo axis, so the system can change bending radius from 10 mm to 500 mm without manual resets.

In energy and construction, these machines handle seamless pipe forming for oil, gas, and water transport. Automated lubrication and cooling keep temperatures between 20°C and 80°C for steady output.

Of course, more automation means higher upfront cost and extra software maintenance, which might slow adoption for small producers.

Frequently Asked Questions

Pipe rolling machines shape metal pipes by applying controlled pressure and rotation. Roll configuration, material compatibility, and operational precision all play a part in performance. Sizing, safety, and regular maintenance matter for accuracy and machine life.

What are the different types of pipe rolling machines available?

Pipe rolling machines fall into categories based on roll setup and drive system. The most common are three-roll and four-roll hydraulic machines, rotary draw benders, and plate rolling systems.

Three-roll machines use two fixed bottom rolls and one adjustable top roll, bending pipes with radii from 50 mm to 3,000 mm. Four-roll models add another lower roll to grip material better, cutting slippage by about 20% compared to three-roll units.

Hydraulic systems run at 10–25 MPa for stable force. Hydraulic actuation delivers steady torque, so curves come out smoother and repeatability goes up—especially for stainless and carbon steel pipes.

How do you determine the appropriate size and capacity of a pipe rolling machine for a specific project?

Machine capacity comes down to maximum rolling thickness and pipe diameter range. A mid-range hydraulic unit might handle wall thicknesses up to 25 mm and diameters from 100 mm to 1,200 mm.

Material strength matters. A machine rated for 350 MPa carbon steel can’t roll 600 MPa stainless of the same thickness without issues.

Engineers figure out the needed rolling force with: F = (k × σy × t²) / D, where σy is yield strength, t is thickness, and D is diameter.

Choosing a machine with at least 15% higher torque capacity than needed helps ensure reliable operation and protects the motor from overload.

What safety measures should be implemented when operating a pipe rolling machine?

Operators need to follow ISO 12100 and EN 60204-1 standards for machine safety. Each pipe rolling machine should have an emergency stop circuit with a response time faster than 100 milliseconds.

Mechanical guards must cover all rotating rolls. Work zones should maintain at least 1.5 meters of clearance around the equipment.

Pipe slippage often happens during initial feeding. To help with this, anti-slip rollers with a friction coefficient above 0.6 μ work best.

Operators should get training in hydraulic pressure control and pinch point awareness. Lockout/tagout procedures are also essential.

Can pipe rolling machines handle different materials, and how does this affect the rolling process?

Most pipe rolling machines work with carbon steel (A106 Grade B), stainless steel (A312 TP304/316), and aluminum alloys (6061-T6). Each material needs a specific roll pressure and speed.

Aluminum usually needs about 30% less roll pressure than carbon steel due to its lower yield strength (250 MPa compared to 350 MPa). Stainless steel, which is harder, rolls best at slower feed rates of 2–4 m/min to avoid surface cracks.

Hardened alloy rolls with a surface hardness of HRC 55–60 hold up well when rolling stainless steel. High roll hardness helps resist abrasion and keeps dimensions accurate through long runs.

What maintenance procedures are recommended to ensure the longevity of a pipe rolling machine?

Routine maintenance means lubricating bearings every 250 operating hours with lithium-based grease (NLGI Grade 2). Inspect hydraulic hoses for leaks, especially if they’re rated above 15 MPa.

Check roll alignment monthly using a 0.02 mm feeler gauge. Uneven alignment can cause surface defects and shorten roll life.

Test electrical system insulation resistance at 500 VDC, aiming for values above 1 MΩ. Reliable electrical insulation keeps motors running smoothly.

What are the latest technological advancements in pipe rolling machine design and functionality?

Modern pipe rolling machines now feature CNC control systems. These systems can adjust rolls with position accuracy down to ±0.1 mm.

Operators can set up precise, repeatable bending sequences. That’s a big step up from older, less predictable setups.

Many machines use servo-hydraulic drives. This upgrade cuts energy use by up to 25% compared to standard hydraulic designs.

Servo control only adjusts pressure when needed. As a result, machines generate less heat and oil lasts longer.

Engineers have added advanced sensors to monitor roll force and pipe curvature in real time. Data streams directly into IoT-based dashboards that follow the OPC UA protocol.

Factories can now spot maintenance issues early, which helps avoid unexpected downtime—sometimes by as much as 30%.
