Aluminum Fin Plate Stamping Line
The shape and size of the produced fins conform to product drawings.
The fins are flat and punched without burrs or punching marks.
The punching flanging height is consistent, with no cracking, treading, or curling at the flanging mouth or root.
The equipment achieves a qualified fin production rate of ≥99%.
The filming speed ranges from 100-120 times per minute, producing 6 fins per cycle.

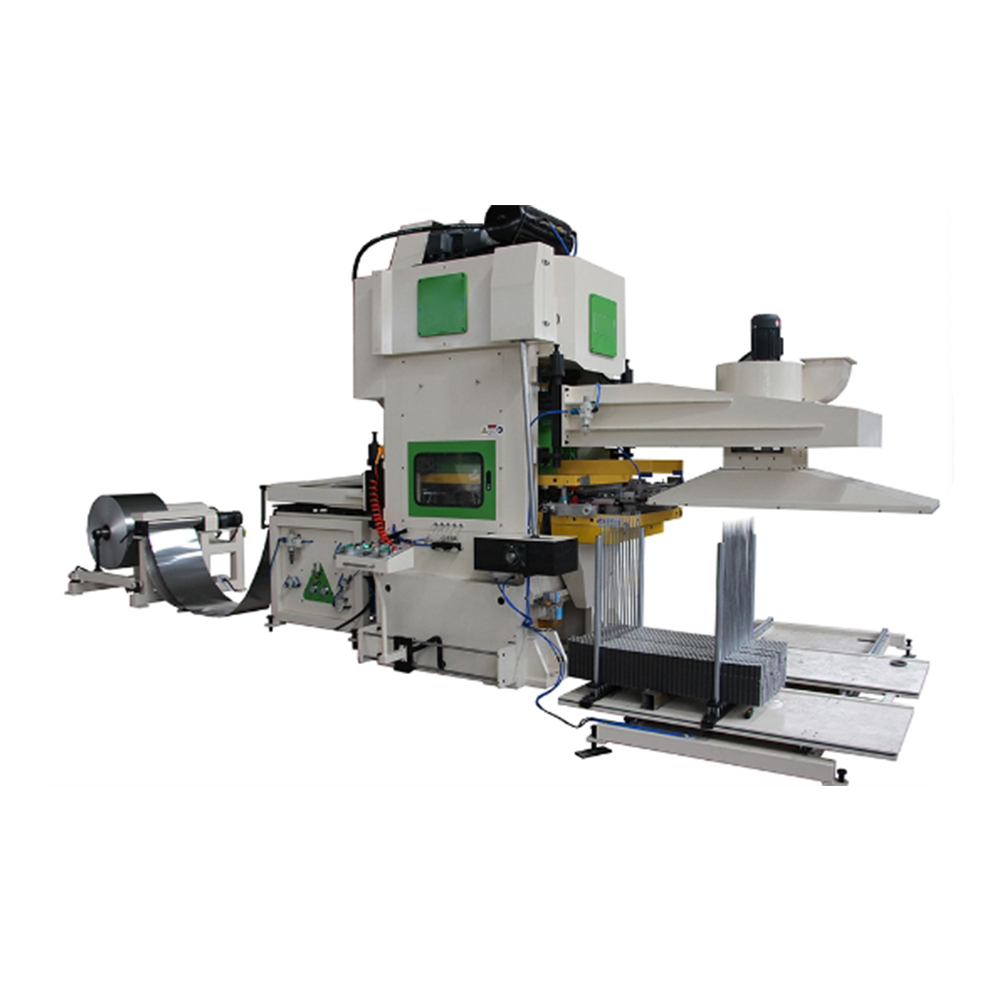

The Aluminum Fin Plate Stamping Line is a specialized equipment designed to process refrigerator evaporator fins efficiently. This state-of-the-art machine is centrally controlled by an FX2N series PLC and features adjustable filming speed through frequency control. The equipment operates in a continuous loop during production, ensuring consistent and reliable performance.
Parameter
Parameter | Data | |
|---|---|---|
| Dimensions | 4500X1800X1800mm | |
| Weight | 3T | |
| Control power | 380V, 50Hz, 3Phae (Customized) | |
Parameter | Data | |
|---|---|---|
| Input air source | 0-0.8Mpa | |
| Rated load duration | 9KW | |
Features
A high-efficiency 3T-capacity production system engineered for precision stamping of refrigerator evaporator fins. Centrally controlled by Mitsubishi's FX2N PLC with Delta VFD integration, this 4500×1800mm cell delivers ±0.01mm accuracy using absolute-value servo motors and supports 100+ formula presets. Features Otto/Nix sensors, Airtac pneumatics, and Panasonic safety gratings for ISO-compliant 24/7 operation in HVAC manufacturing environments.
Uninterrupted Production Architecture
Mitsubishi absolute-encoders maintain positional data through power loss (0.8MPa air backup), eliminating servo re-homing—cutting restart delays by 15 minutes per outage while synchronizing with MES via industrial Ethernet for 99.2% OEE tracking.
One-Touch Stamping Reconfiguration
100-recipe HMI library enables SMED die changes in 90 seconds using Weidmüller terminal blocks and PMI/TBI linear guides, enabling rapid shifts between 0.5–1.5mm fin patterns without calibration downtime.
Autonomous Quality Enforcement
Panasonic safety curtains and AI-driven Poka-Yoke systems trigger auto-stops when Otto sensors detect 50μm sheet misalignment, while embedded thermal monitors protect CKD vacuum generators from overloads.
Cloud-Native Process Auditing
SLMP protocol exports servo torque curves and MeanWell power data to cloud MES, generating PDF weld certificates with cryptographic signatures for IATF 16949 automotive fin production compliance.
