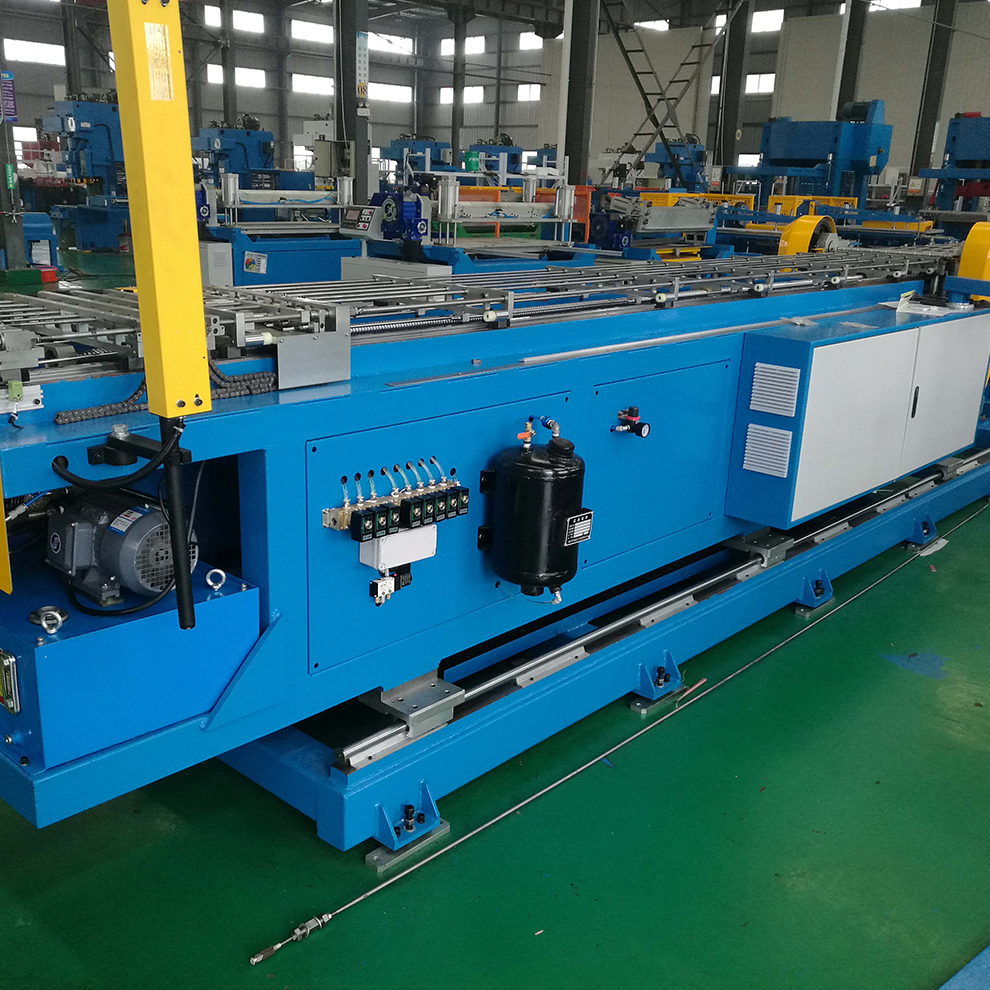

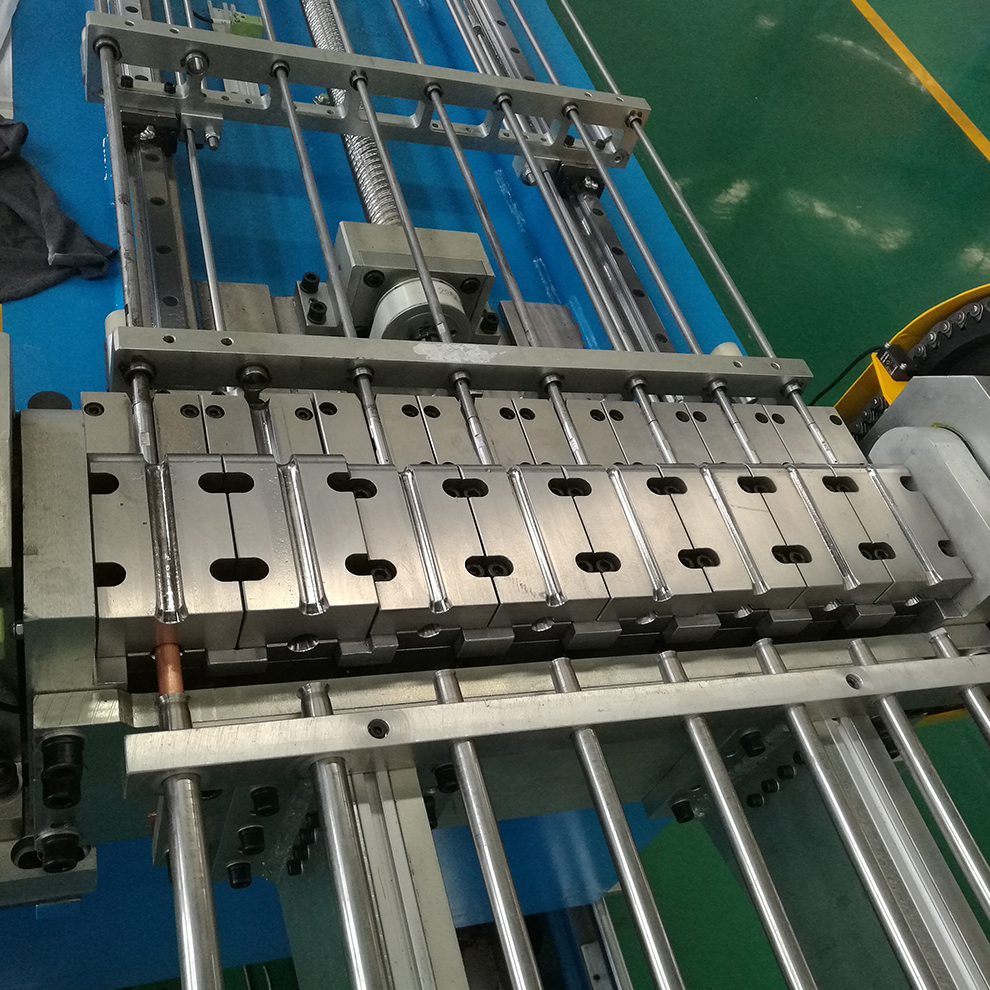

Automatic Hairpin Tube Making Machine
Servo fixed length and material return.
Hydraulic system adopts quantitative hydraulic pump , and swinging oil cylinder drives bending .
Moving in the length direction to make different length workpieces.
Long U pipe bending machine for the plate type copper tube open, straighten, no chip off, bending into a fixed U-tube,
Shape hairpin, also known as hairpin tube; mainly used in air-conditioning two long tube U-automatic production.
Parameter
Item | Data | |
|---|---|---|
| Capacity | 19s/ piece | |
| Tolerance | ±0.8mm | |
| Flat rate | ≤15% | |
| Length rate | ≤1mm | |
| Voltage | 380V | |
Item | Data | |
|---|---|---|
| Power | 13Kw | |
| Air pressure | 0.4-0.6Mpa | |
| Cutting | Rolling cutting | |
| Hydraulic power | 2.2kw | |
| Cooling | Fan cooling | |
Features
Designed for precision manufacturing, this fully automated tube bender integrates servo-controlled motion systems, adaptive frequency drive feeding, and intelligent waste detection. Combining energy efficiency (30% lower consumption), sub-millimeter accuracy (±0.1mm), and rapid mold changeovers, it streamlines high-volume production of HVAC, automotive, and refrigeration components.
Triple-Servo Precision Motion
Servo motor-driven bending, material return, and horizontal rack translation enable synchronized, jerk-free operation for complex geometries with ±0.2° angular repeatability.
Smart Digital Feeding System
Variable frequency motor + belt drive delivers programmable-length feeding (±0.1mm tolerance), while an independent cylinder auto-adjusts feed pressure for zero-slip material handling.
Instant Tooling Adaptability
Sub-3-minute mold swaps accommodate tubes from ⌀5–50mm via quick-release clamps and zero-clearance alignment slots, eliminating re-calibration downtime.
Intelligent Process Control
Real-time waste detection (kinks, deviations >0.15mm) triggers auto-stops, reducing scrap by 18%—paired with inverter-driven high/low-speed modes for optimized cycle times.
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
