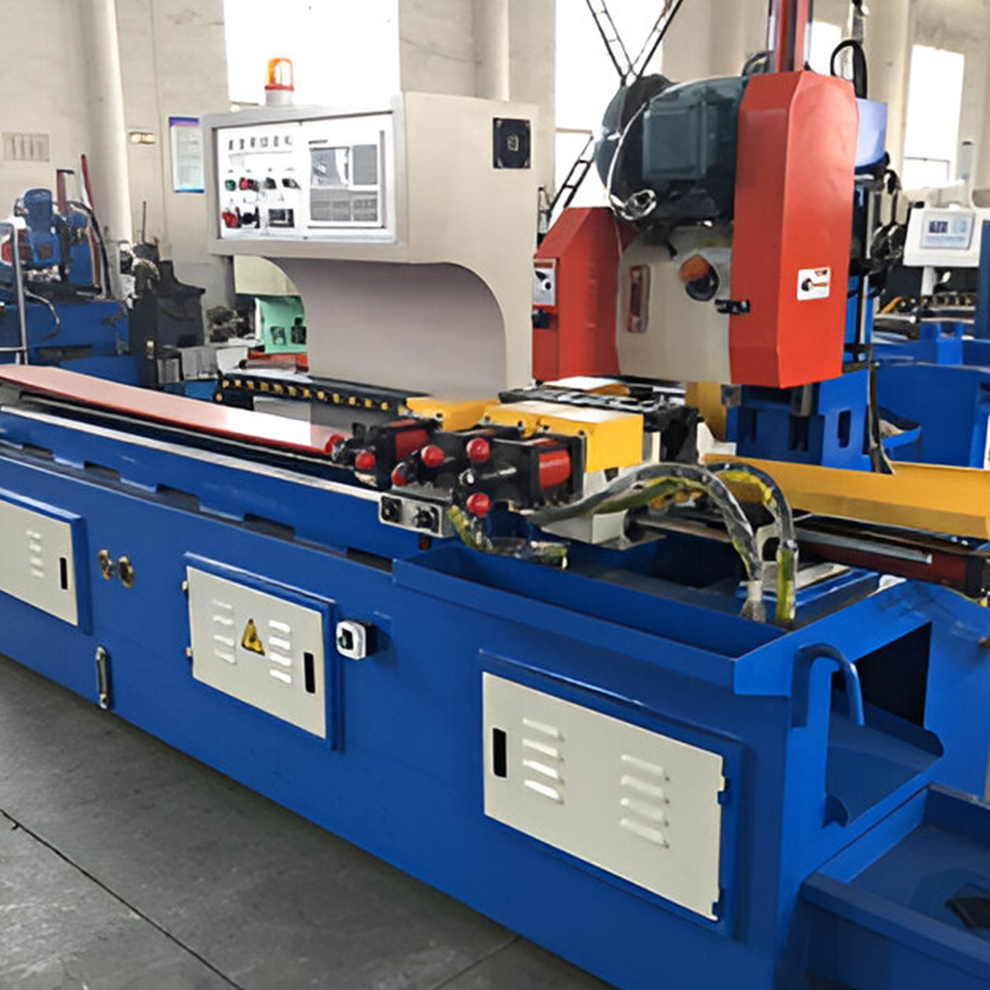

Automatic Straight Tube Saw Cut To Length Machine
Top-down sawing with the machine head, multiple tubes cut at the same time.
The length can be adjusted in the system, with no left material.
Sawing chamfering speed, feed speed can be adjusted parametrically.

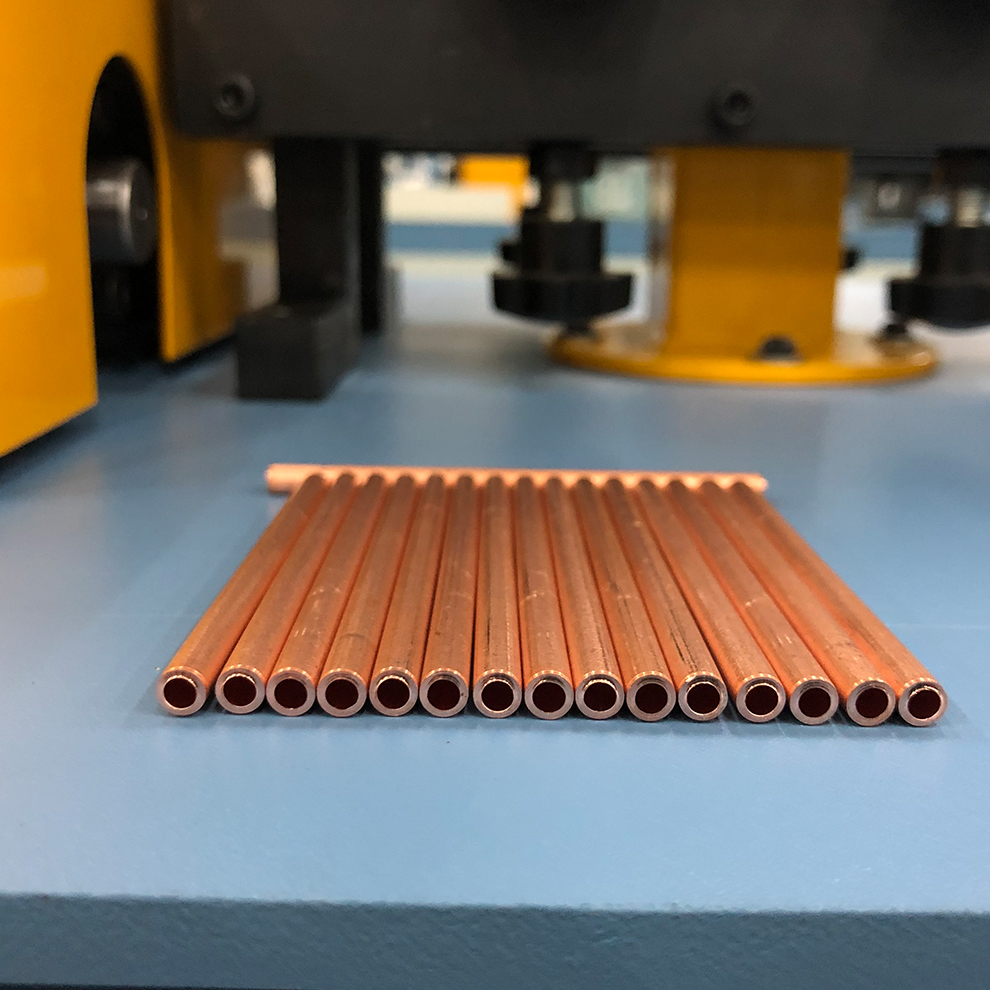

The tube cutting machine is special designed for copper and aluminum tube process, which is mainly used for tube blanking before tube end process. It is easy to operate.
Parameter
Parameter | Data | |
|---|---|---|
| Tube Material | Copper / Aluminum / Bundy /Bar | |
| Accuracy | ±0.2-±0.3mm | |
| Spindle speed | 80/40RPM | |
| Feed servo | 1.5kw | |
| Cutting motor power | 3.3/4kw | |
Parameter | Data | |
|---|---|---|
| Oil pump motor power | 4kw | |
| Electric System | 380V, 50Hz, 3Phae (Customized) | |
| Dimension | 2300 x 650 x 1300 mm | |
| Weight | 1460KG | |
Features
This specialized cutting system is engineered for precision blanking of copper, aluminum, Bundy, and metal bars (round: Ø75–150mm; square/rectangular: 65×65mm to 120×90mm) prior to end-forming processes. Combining a Mitsubishi PLC control system with German GN hydraulic valves and a servo-driven feeding mechanism, it delivers rapid, high-accuracy (±0.2mm) cuts at spindle speeds of 80 RPM (thin-wall) or 40 RPM (thick sections). Ideal for HVAC, automotive, and refrigeration industries, its rugged 1,460kg steel frame ensures stability during continuous operation.
Advanced Control & Hydraulic Integration
Operated via a user-friendly touchscreen, the machine seamlessly blends Mitsubishi’s servo motors (1.5kW feed, 3.3/4kW cutting) and PLC with German GN hydraulic valves (solenoid, overflow, and sandwich plate). This synergy enables manual, semi-automatic, or fully automated cutting cycles, supported by pre-set length templates for production flexibility.
High-Speed Precision Cutting
Equipped with dual spindle speeds (80/40 RPM) and servo-driven feeding, the system achieves ±0.2mm dimensional accuracy even at maximum throughput. The hydraulic unit sustains 0.6–0.8MPa working pressure for clean cuts across materials, from thin copper tubes to dense 120×90mm bars.
Multi-Profile Compatibility
Designed for versatility, it processes round, square (■65×65mm–□110×110mm), and rectangular profiles without tooling changes. Hardened blades paired with a rigid 2.3×0.65×1.3m steel structure minimize vibration, ensuring consistent results for irregular cross-sections.
Reliable Industrial-Grade Components
Premium Schneider electrical components (contactors, thermal overload relays) and a 4kW oil pump motor ensure uninterrupted mass production. Modular subsystems simplify maintenance, while the 380V/3-phase (50Hz) power setup supports global voltage customization.
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
