Automatic Tube End Forming Machine
Friendly user operation, avoid programming errors of machines group.
Quick feeding, higher working efficiency.
Auto counting system, easy to control your production. Inquiry

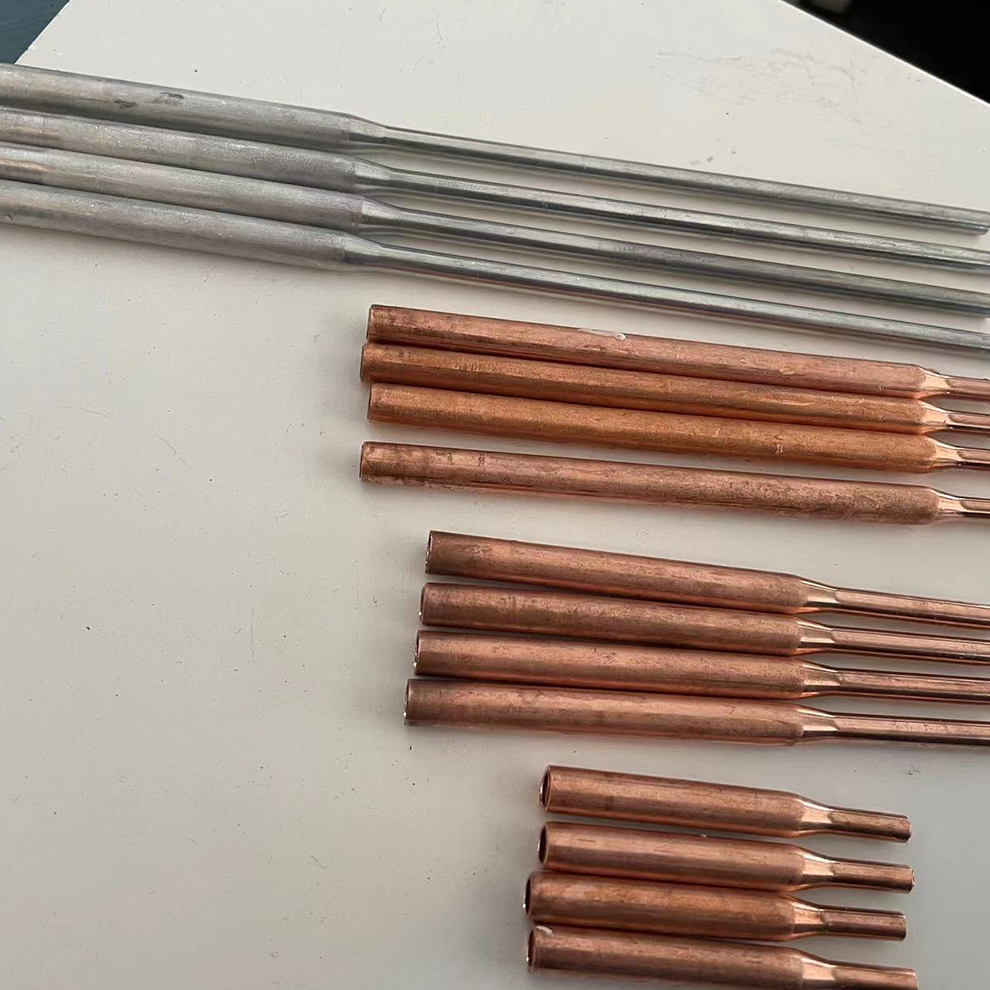

The Automatic Tube End Forming Machine is a state-of-the-art equipment specifically engineered to cater to the needs of the refrigeration industry. Its primary function is to shrink tube ends, ensuring a perfect fit and optimal performance in refrigeration systems. The machine is composed of two essential components: an automatic feeder and an automatic reducing unit.
Parameter
Items | Parameters | |
|---|---|---|
| Diameter | Φ5-20mm | |
| Enable length | 18-22mm | |
| Wall thickness | copper,aluminum≤1.5mm | |
| Stainless steel≤1.2mm | ||
| Working speed | 1800PCS/H | |
| Tolerance of depth | ≤0.25mm | |
| Eccentric degree | ≤0.15mm | |
Items | Parameters | |
|---|---|---|
| Feeding method | Auto feeding | |
| Driven | Pneumatic and Motor | |
| Control | PLC | |
| Operations | Manual/automatic | |
| Pressure | 0.5~0.7MPa | |
| Power | 380v/50Hz/3Ph or customization | |
| Dimension | 1600x1000x1600mm | |
Features
In summary, the Automatic Tube End Forming Machine is a highly advanced and efficient solution for tube end shrinking in the HAVC industry. Its combination of user-friendly operation, high-speed feeding, quick mold replacement, automatic counting, and self-alarming systems make it an indispensable asset for manufacturers seeking to optimize their production processes and maintain the highest standards of quality and safety.
User-friendly operation
The Automatic Tube End Forming Machine is designed with the operator in mind. Its intuitive interface and user-friendly controls minimize the likelihood of programming errors, ensuring a seamless and efficient operation. This feature enables even less experienced operators to work with the machine effectively, reducing training time and improving overall productivity.
High-speed feeding
The machine's advanced automatic feeder is capable of delivering tubes at an impressive speed, significantly enhancing the working efficiency of the entire process. This high-speed feeding capability allows for faster production cycles, increasing output and reducing lead times.
Quick mold replacement
The Automatic Tube End Forming Machine is engineered to facilitate swift mold changes, making it highly adaptable to different tube sizes and specifications. This feature ensures minimal downtime during product changeovers, allowing manufacturers to respond quickly to varying production requirements and maintain a competitive edge in the market.
Automatic counting system
The machine incorporates a built-in counting system that automatically keeps track of the number of processed tubes. This feature simplifies production control, enabling operators to monitor progress, set production targets, and make informed decisions based on real-time data. The automatic counting system also helps in maintaining inventory records and facilitates accurate reporting.
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
