Capillary Tube Straightening And Stripping
Two-part clamping die to minimize tube distortion, get smooth cutting end surface.
Chipless cutting with 360° rotary cutting and stretching with two points clamping.
Guide channel for continuous capillary tube feeding without jam.

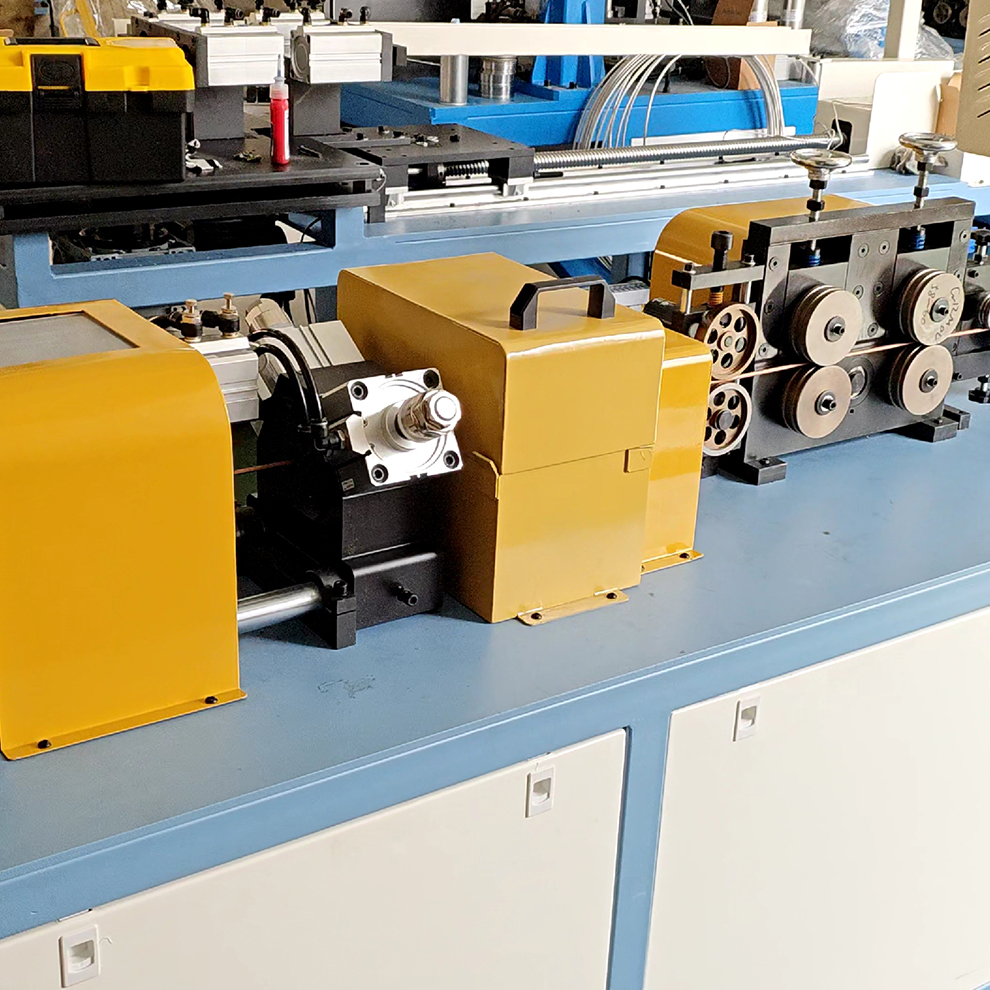

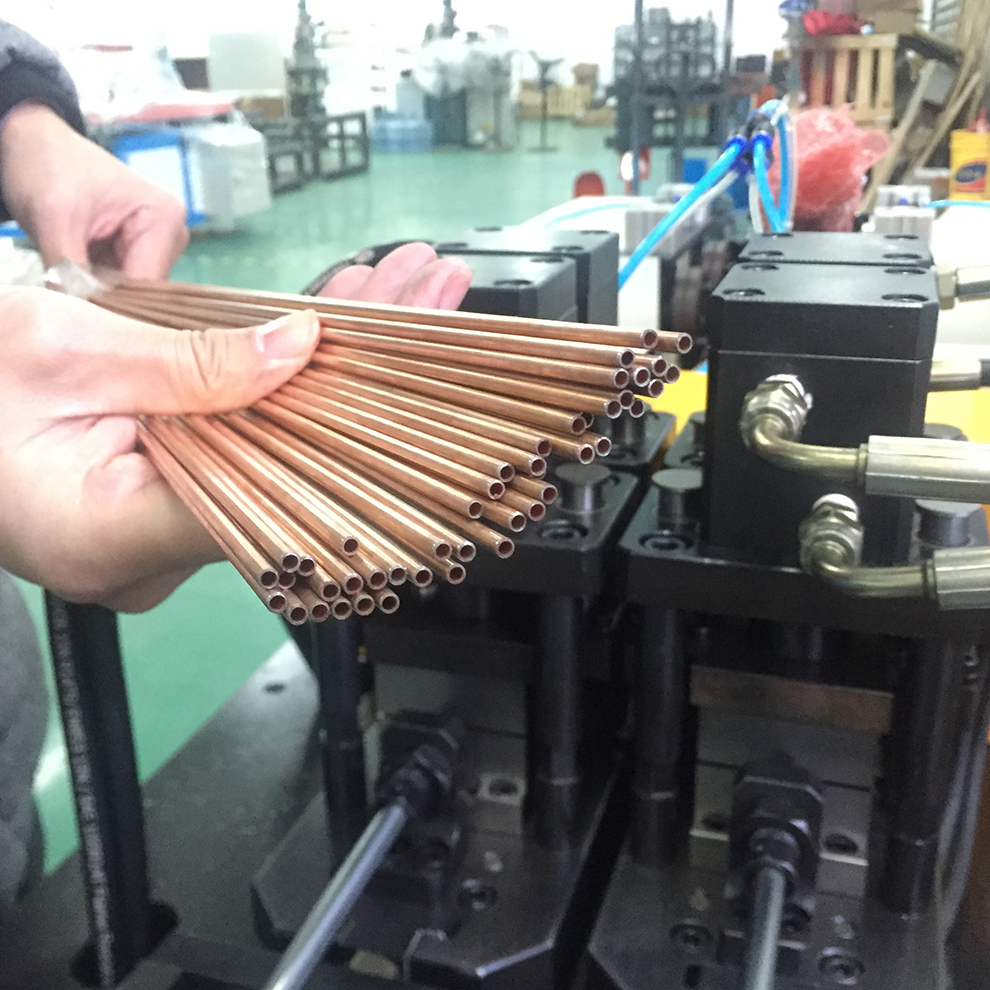

The capillary tube straightening stripping and cutting machine is special designed for PE coated capillary tube, combined with PE stripping device for both two tube ends.
Parameter
Parameter | Data | |
|---|---|---|
| Tube Material | Copper Capillary tube | |
| Tube Diameter | 1.5-4mm | |
| Cutting Length | >50mm | |
| Work Speed | 0~60m/min, adjustable by Inverter | |
| Cutting Tolerance | +/-1mm/1m | |
Parameter | Data | |
|---|---|---|
| Control System | PLC control / HMI/ Servo Motor | |
| Motor Power | 1.12KW | |
| Electric System | 380V, 50Hz, 3Phae (Customized) | |
| Dimension | 2300 x 650 x 1300 mm | |
| Weight | 460 KG | |
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
