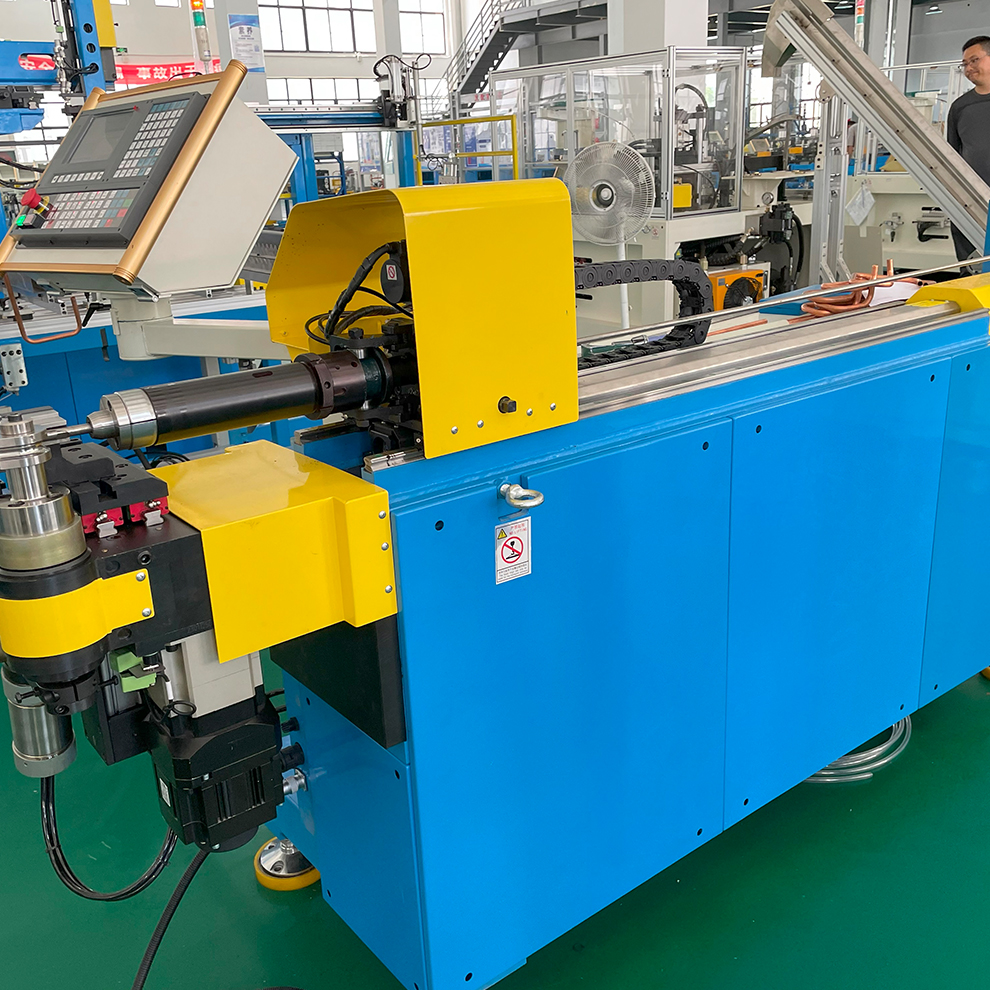

CNC Pneumatic 3D Tube Bender
Pneumatic clamping, fast, highefficiency.
The use of two moving head move quickly change the mold, stable andefficient.
Using CNC controller, display with 5.7 'blue liquid crystal display, can save atotalof 900 processingprocedures.
The CNC tube bender used to pipe (such as: brass, aluminum, iron pipe) into a three-dimensional curve of the pipeline. Widely used in air conditioning, locomotive and other industries.
Parameter
Item | TB-13 | TB-19 | TB-25 | ||
|---|---|---|---|---|---|
| Bending capacity | Copper/Aluminum tube | Max：16mm×2.0mm | Max：19mm×2.0mm | Max：25mm×2.0mm | |
| Max bending angle | 190° | 190° | 190° | ||
| Max bending radius | 80mm | 80mm | 80mm | ||
| Max bending length | 1200mm | 1200mm | 1200mm | ||
| Axis speed | Feeding axis | 1200mm/sec | 1200mm/sec | 1200mm/sec | |
| Rounding axis | 180°/sec | 180°/sec | 180°/sec | ||
| Bending axis | 180°/sec | 180°/sec | 180°/sec | ||
| Power of Axis | Feeding axis | 0.75kw | 0.75kw | 0.75kw | |
| Rounding axis | 0.4kw | 0.4kw | 0.4kw | ||
| Bending axis | 1.5kw | 2.2kw | 3.0kw | ||
| Air Pressure | 0.4-0.7Mpa | ||||
Features
This precision bender combines Mitsubishi servo-driven axes, industrial Omron/Schneider electronics, and hydraulic mandrel control for aerospace-grade accuracy (±0.03mm). The 10-inch CNC interface enables complex geometric programming with multi-speed bend/push/spin adjustments, ideal for high-tolerance tubing in HVAC, automotive, and hydraulic systems.
Multi-Capacity Servo-Hydraulic Bending
Processes ⌀16mm to ⌀25mm tubes (copper/aluminum) at 0.4–0.7 MPa air pressure.Hydraulic mandrel/plug control prevents wrinkling, while servo-driven feed/bend/rotate axes (0.75–3.0 kW motors) enable 180°/sec bending with <0.1mm cumulative error.
Advanced CNC Programming Interface
10-inch touchscreen supports 6-speed adjustments (bend/push/spin), dual-program comparison, and modes: manual/single/auto.Smart features: reverse pull compensation, anti-collision guides, and mandrel early-retract to protect thin-walled tubes.
High-Performance Precision Mechanics
Annealed steel frame + linear guides ensures <0.03mm/m straightness during 1,200mm bends. Seamless gear transmission eliminates backlash, with quick-change fixtures for ≤2-minute mold swaps.
Industrial Reliability & Speed
Mitsubishi servos + Omron/Schneider electronics achieve 99.9% uptime.Axis speeds: 1,200mm/sec feed, 180°/sec rotation/bending for 22-second cycle times (90° bends).
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
