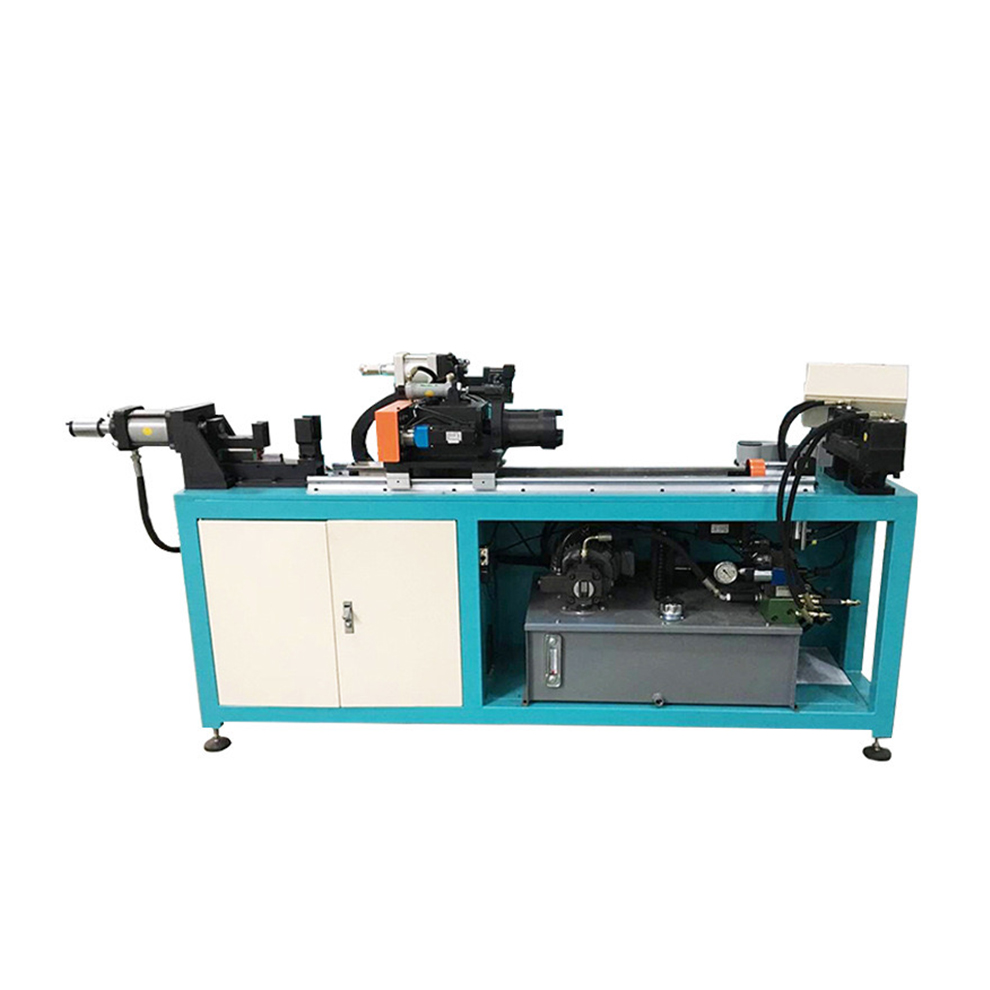

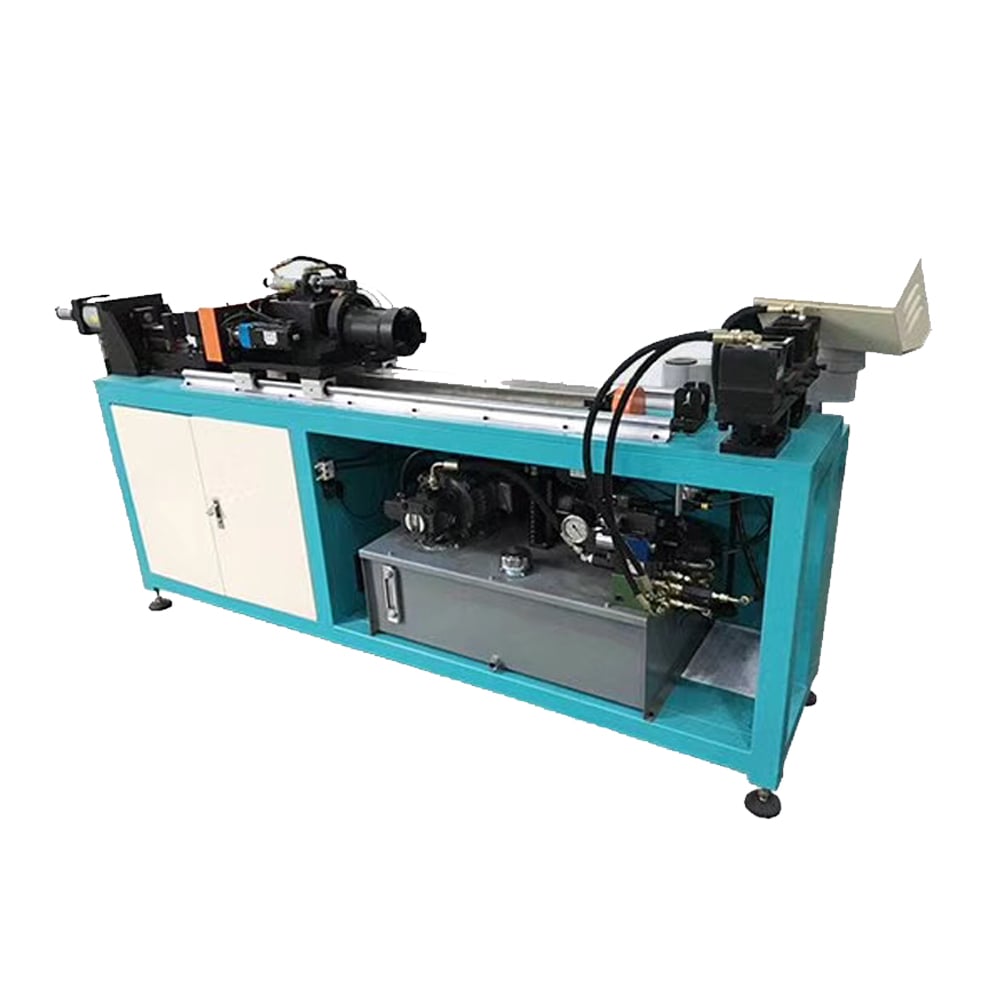

Cooper Tube Drilling Flanging Machine D-50
NC programming, easy to operate.
One time forming,higher efficiency.
Chip-less cutting,no scars,no need clear.
This tube drilling machine is widely used in air condition pipe industry, solar water heater industry.
Parameter
Parameters | Data | |
|---|---|---|
| Tube materials | copper/steel/bundy tube | |
| Suitable diameter | Ф10-Ф 50mm | |
| Wall thickness | 0.3-2.0mm | |
| Diameter of holes | according to diameter of tubes | |
| Pitch | 16mm | |
Parameters | Date | |
|---|---|---|
| Flanging height | 1-2.5mm | |
| Max working length | 1700mm（counting from first hole） | |
| Working efficiency | 2.5-3.5 sec/per hole | |
| Motor power | 2.2KW | |
| Dimension | 2350mm*1000mm*1500mm | |
Features
Optimized for HVAC, refrigeration, and solar thermal systems, this CNC-controlled machine performs high-speed drilling (Φ10–50mm tubes) and precision flanging (1–2.5mm height) at 2.5–3.5 seconds/hole. Combines Delta servos, pneumatic molding, and hydraulic clamping to process copper/steel/Bundy tubes up to 1.7m long with chip-less, scar-free cuts.
Multi-Material Precision Machining
Handles copper, steel, and Bundy tubes (0.3–2.0mm wall thickness) with servo-driven positioning (±16mm hole pitch accuracy). Three-jaw feed mechanism and NSK-guided rails ensure distortion-free processing for critical fluid/gas applications.
Ultra-Fast Chip-Free Processing

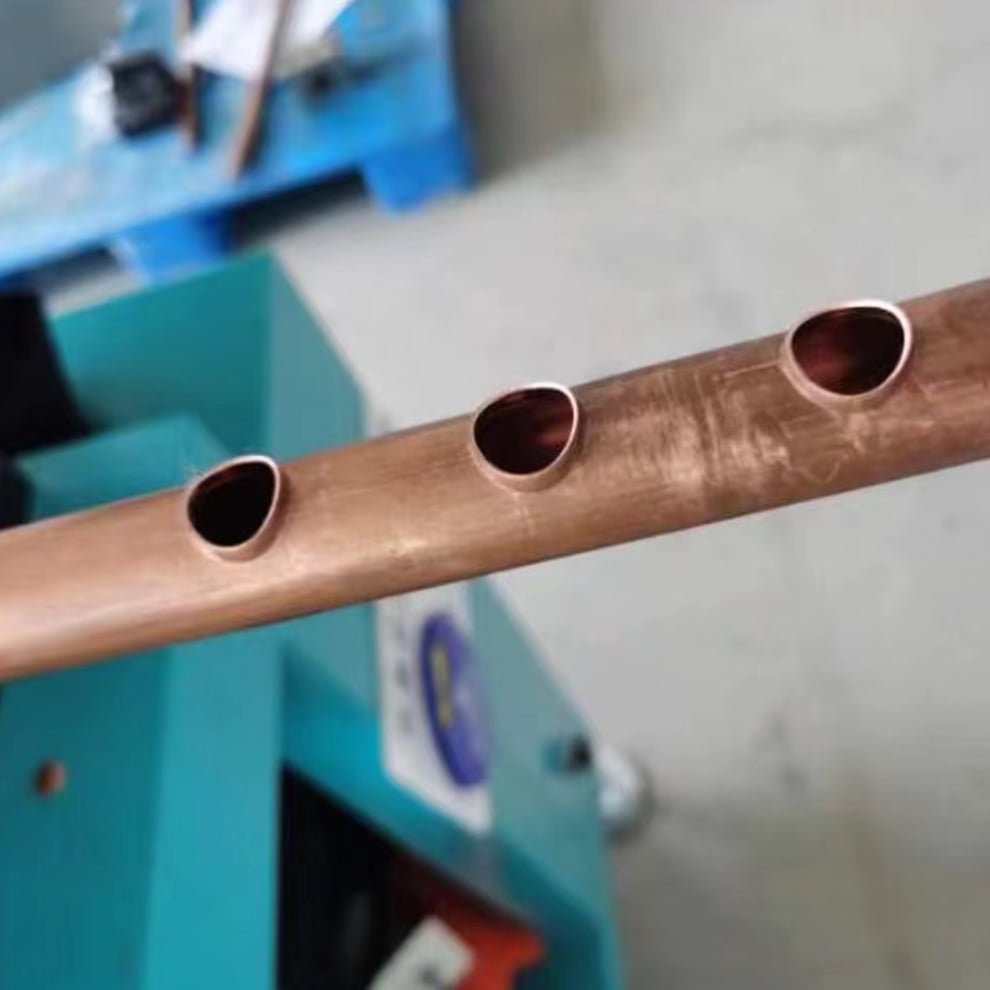

Integrated punch/flange dies complete drilling, flanging, and deburring in one cycle (3-hole burst in <10.5 sec). Eliminates secondary cleaning while preventing surface scarring—ideal for refrigerant line manufacturing.
Delta Servo-Pneumatic Synergy
Dual Delta B2 servo motors (2.2KW) + WEILI cylinders enable 0.01mm repeatability. Programmable via 7" Weinview HMI with stored NC recipes for rapid job changeovers in solar collector/HVAC production.
Heavy-Duty Thermal Management
Vibration-treated steel frame (2350×1000×1500mm) houses an air-cooled hydraulic system (≤55°C) with Taiwan-made pumps. Foot-mounted leveling cups stabilize operations during 24/7 high-cycle runs.
