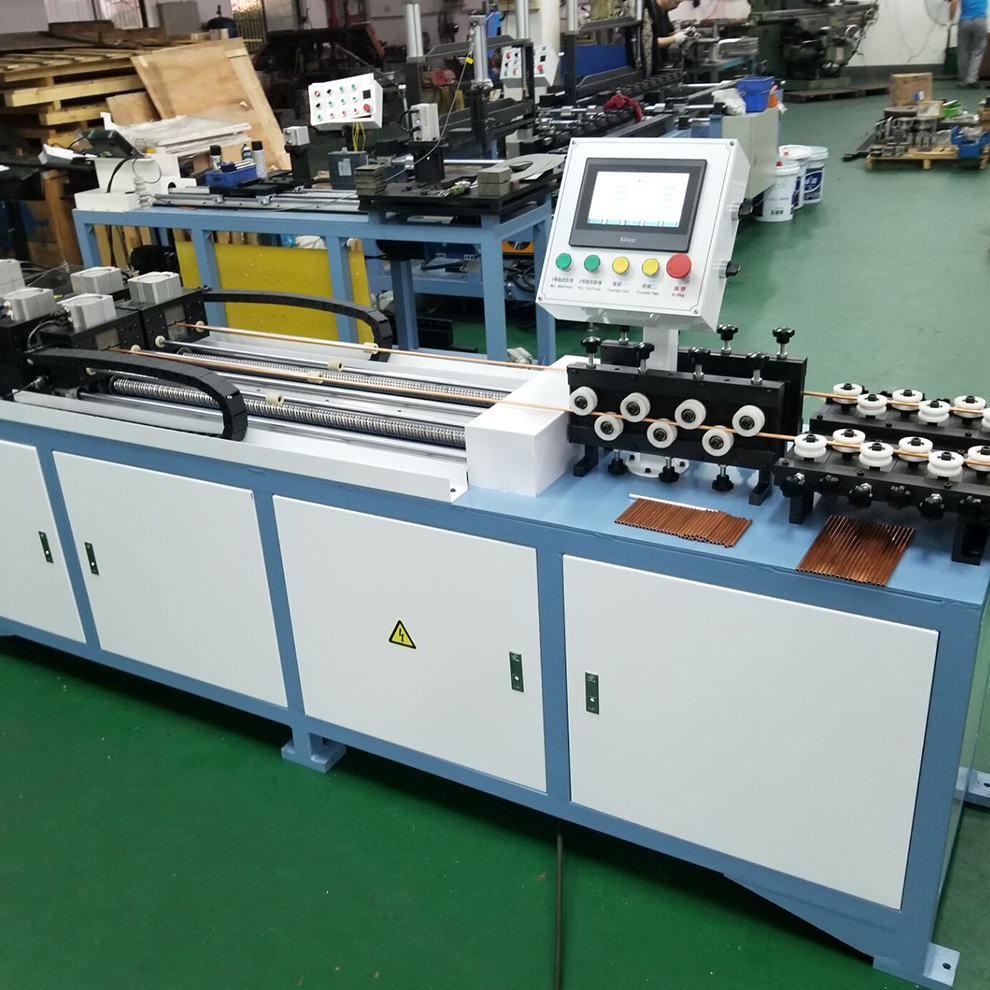

Copper / Aluminum Straightening & Chipless Cutting Machine 1+1
Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
High accuracy concentricity ensures to get good welding quality in following process.
Chipless cutting with 360° rotary cutting and stretching with two points clamping.
Straightening wheel Nylon and “U” shape rubber belt to avoid scratch on tube surface.
The double station chipless tube straightening and cutting machine is driven by two servo motors separately, means the cutting length and cutting speed for two stations can be set separately. With PLC control and servo motor driven, the cutting speed and cutting tolerance is much more than single station machine. And the cutting method can be saw cutting or clean blade cutting.
Parameter
Parameter | Data | |
|---|---|---|
| Tube Material | Copper / Aluminum / Bundy tube | |
| Tube Diameter | 4-20mm | |
| Cutting Length | 50-9999mm | |
| Work Capacity | 1+1 pcs/time | |
| Feeding Speed | 10times/min (L=1000mm) | |
| Cutting Tolerance | 0.5mm/1m | |
Parameter | Data | |
|---|---|---|
| Control System | PLC control / HMI/Servo Motor | |
| Motor Power | 3.6KW | |
| Electric System | 380V, 50Hz, 3Phae (Customized) | |
| Air Pressure | 0.6-0.8MPa | |
| Dimension | 2750 x 780 x 1520 mm | |
| Weight | 1200 KG | |
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
