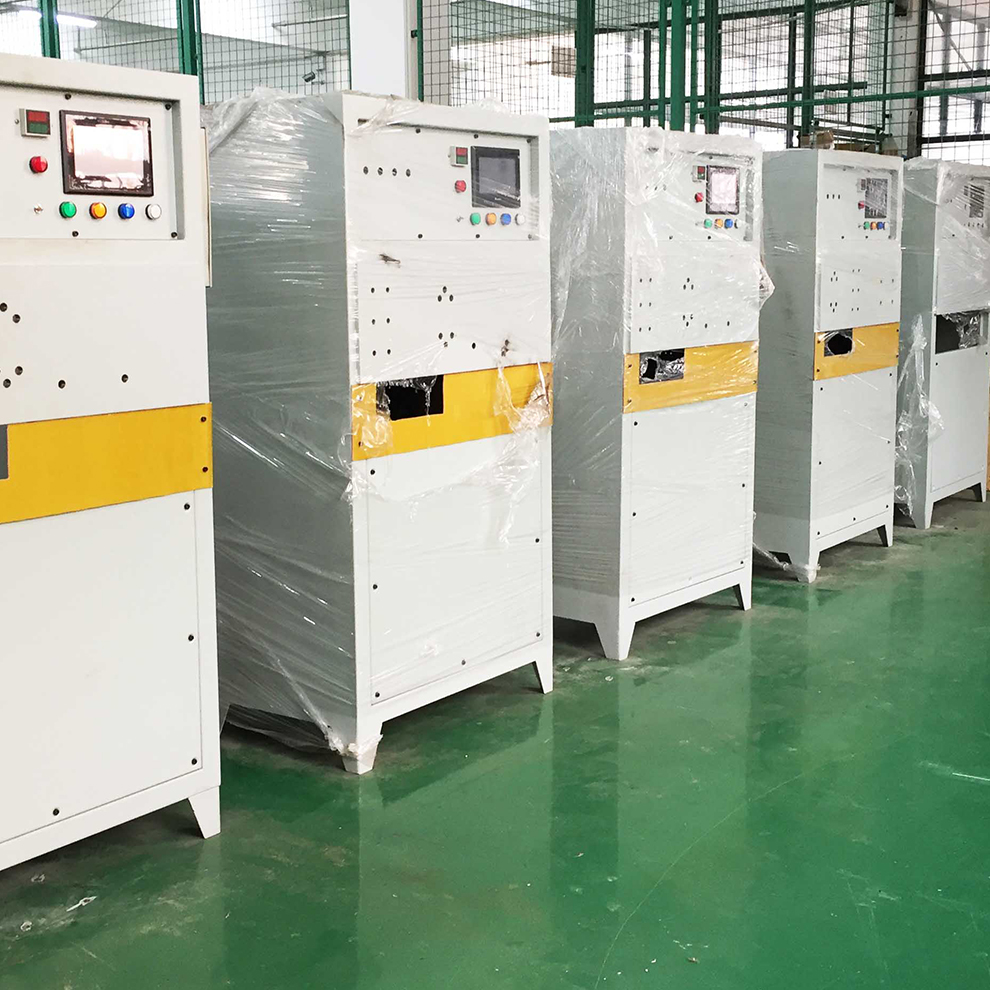

Copper-Aluminum Tube Insert Resistance Welding Machine
Patented special designed free adjustable electrode base calibrating system.
Welding stroke control to ensure the welding quality.
Special customized welding transformer to get the stable welding performance.
Adjustable secondary welding current in 8 grades.

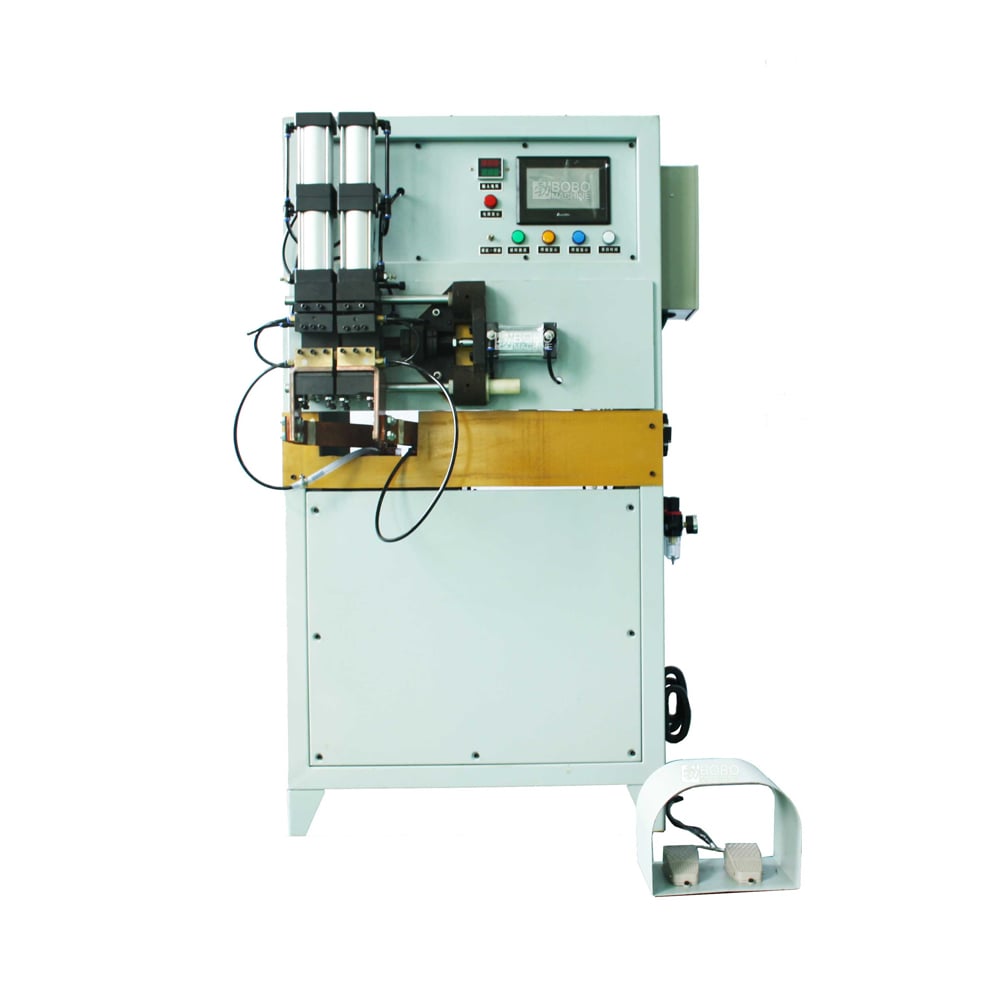

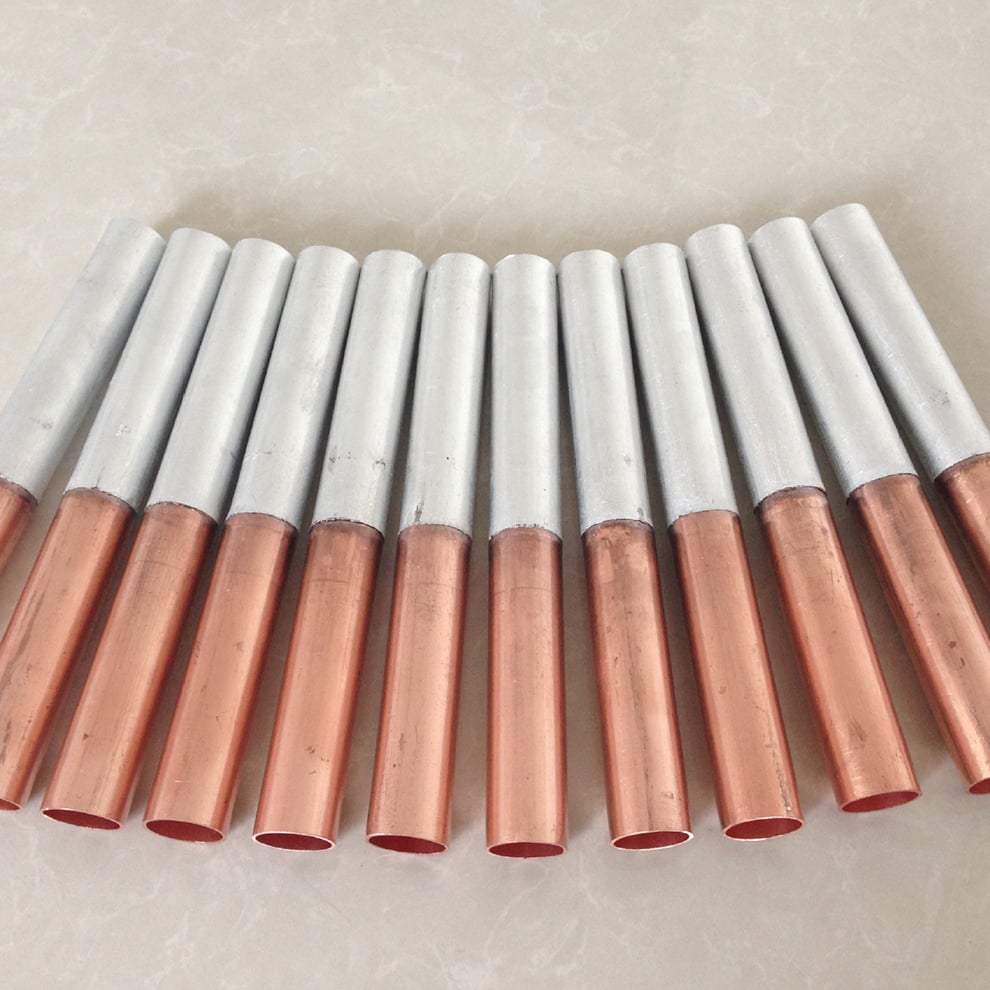

The Copper-Aluminum Tube Insert Resistance Welding Machine is a specialized equipment designed for joining copper tubes with aluminum tubes using resistance welding technology. This machine is capable of welding tubes with diameters ranging from 6mm to 10mm and wall thicknesses between 0.5mm and 1.5mm, making it suitable for various applications in the HVAC, refrigeration, and automotive industries.
Parameter
Parameter | Data | |
|---|---|---|
| Tube Material | Copper tube + Aluminum tube | |
| Tube Diameter | Φ6-10mm | |
| Tube Wall Thickness | 0.5-1.5mm | |
| Welding Speed | 5-7 seconds/pic | |
| Welding capacity | 50KA | |
Parameter | Data | |
|---|---|---|
| Output Voltage | 8 Grades, Adjustable | |
| Air Pressure | 0.5-0.6MPa | |
| Control System | PLC control / Touch Screen | |
| Dimension | 800 x 550 x 1520 mm | |
| Weight | About 600 KG | |
Features
A precision 50KVA resistance welder for fusing dissimilar copper (Ø6–10mm) and aluminum tubes (0.5–1.5mm thickness) in 5–7 seconds per joint. Optimized for HVAC, refrigeration, and automotive heat exchangers, it combines PLC-touchscreen controls, 8-grade voltage tuning, and a compact 800×550×1520mm frame to deliver aerospace-grade bonds with repeatable reliability.
Dissimilar Metal Welding Expertise
Proprietary resistance algorithms overcome conductivity differences between copper and aluminum, preventing brittle intermetallic formation. Air-cooled electrodes (0.5–0.6MPa pressure) ensure <5% porosity rates across 0.5–1.5mm wall thicknesses.
Adaptive Voltage & Cycle Control
Eight-step voltage grading (380–450V input) fine-tunes thermal input for Ø6–10mm tubes via touchscreen presets—eliminating under/over-weld defects in mixed-material production batches.
Rapid PLC-Guided Automation
Integrated Siemens PLC reduces cycle times to 5 seconds/joint while storing 200+ weld recipes. Real-time current/force monitoring auto-adjusts parameters mid-cycle for zero scrap output.
Lean Manufacturing-Ready Footprint
The 600kg unit occupies 0.7m² yet handles 50KVA loads, featuring tool-less electrode swaps and embedded IoT ports for OEE tracking in Tier 1 automotive assembly lines.
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
