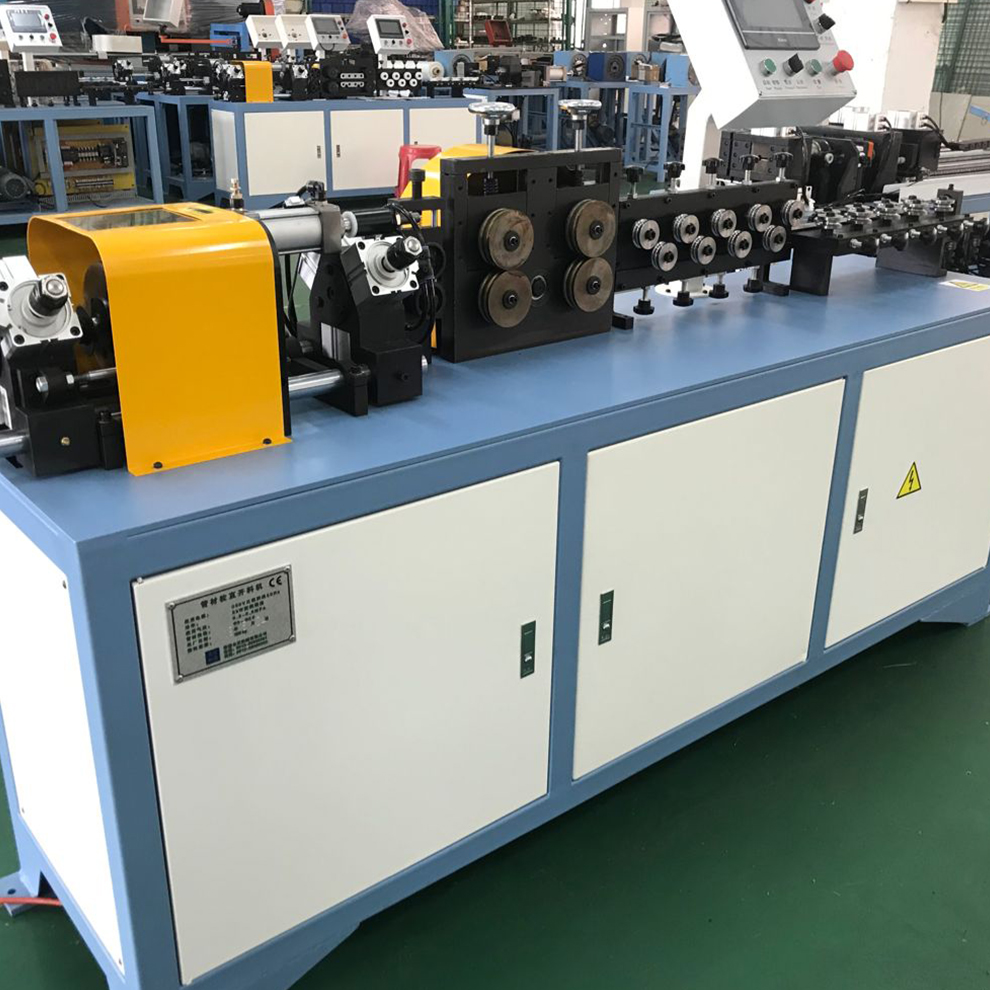

Copper / Aluminum Tube Straightening And Cutting Machine
Cutting system with rotary cutting no burrs. Tube end round.
Length feeding control with high precision.
Support to cut into different length.
Copper and aluminum tubes are widely utilized in various industries due to their superior properties, such as thermal and electrical conductivity, lightweight, and resistance to corrosion. To meet the production demands of these materials, HVAC companies rely on advanced production equipment like those from BOBO Machine, which is capable of processing these metals with high efficiency.
Parameter
Parameter | Data | |
|---|---|---|
| Tube Material | Copper / Aluminum / Bundy tube | |
| Tube Diameter | 4-20mm | |
| Cutting Length | >50mm | |
| Work Speed | 0~60m/min, adjustable by Inverter | |
| Cutting Tolerance | +/-1mm/1m | |
Parameter | Data | |
|---|---|---|
| Control System | PLC control / HMI | |
| Motor Power | 1.12KW | |
| Electric System | 380V, 50Hz, 3Phae (Customized) | |
| Dimension | 2300 x 650 x 1300 mm | |
| Weight | 500 KG | |
Features
BOBO Machine’s advanced solution processes Ø4–20mm tubes (copper/aluminum/Bundy) with chipless, burr-free cuts at 60m/min max speed and ±1mm/m length tolerance. Engineered for HVAC, refrigeration, and automotive applications, this PLC-controlled system combines non-destructive straightening with ≤0.05mm concentricity in a compact 2.3×0.65m footprint.
Ultra-Clean Chipless Cutting
Rotary blade technology delivers burr-free ends in ≤1s cycles, eliminating secondary deburring for leak-proof HVAC/refrigeration assemblies.
Precision Straightening Technology
Multi-axis straightening wheels correct coiled tubes to ≤0.05mm concentricity, ensuring seamless fitment in brazed/welded joints.
Automated Production Flexibility
PLC/HMI control with servo-driven feed/rotation for 25–5,000mm lengths (±0.5mm). Tool-less changeovers adapt to copper/aluminum/Bundy in <15min.
Lean Manufacturing Integration
Horizontal/vertical loading options sync with factory automation. Energy-efficient design (0.4–0.7MPa air pressure) reduces OPEX by 30% vs. conventional systems.
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
