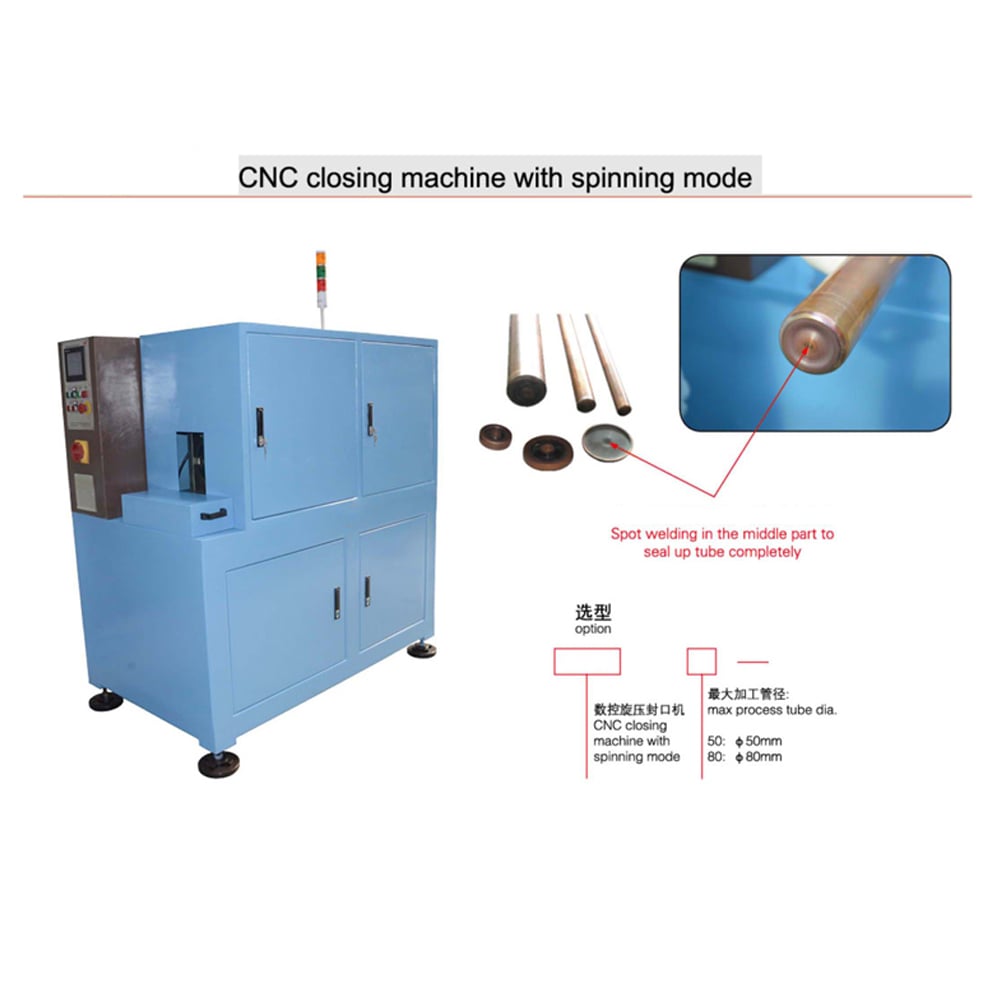

Copper Tube End Closing Machine T-50
Fixed by a rotating tool to rotate the seal.
New clamping die improves the adaptability of the machine to the product.
Driven by servo motor and PLC control.
Simple programming, high repeatability and stable performance.
The tube endspinning closing machine is used for the closing of metal pipe end, mainly used in the manufacture of air conditioners, water heaters, refrigerators, car silencers, and compressors and dryers.
Parameter
Item | Data | |
|---|---|---|
| Tube material | Copper tube | |
| Tube diameter range | MaxΦ50mm/Φ80mm | |
| Working thickness | 0.6-2mm | |
| MinTube length | 200mm | |
| Power | 380V（AC）±10%，50HZ,3pahse | |
| Air pressure | 0.5±0.1MPa | |
| Control system | PLC system | |
Item | Date | |
|---|---|---|
| Loading/Unloading | By Manual | |

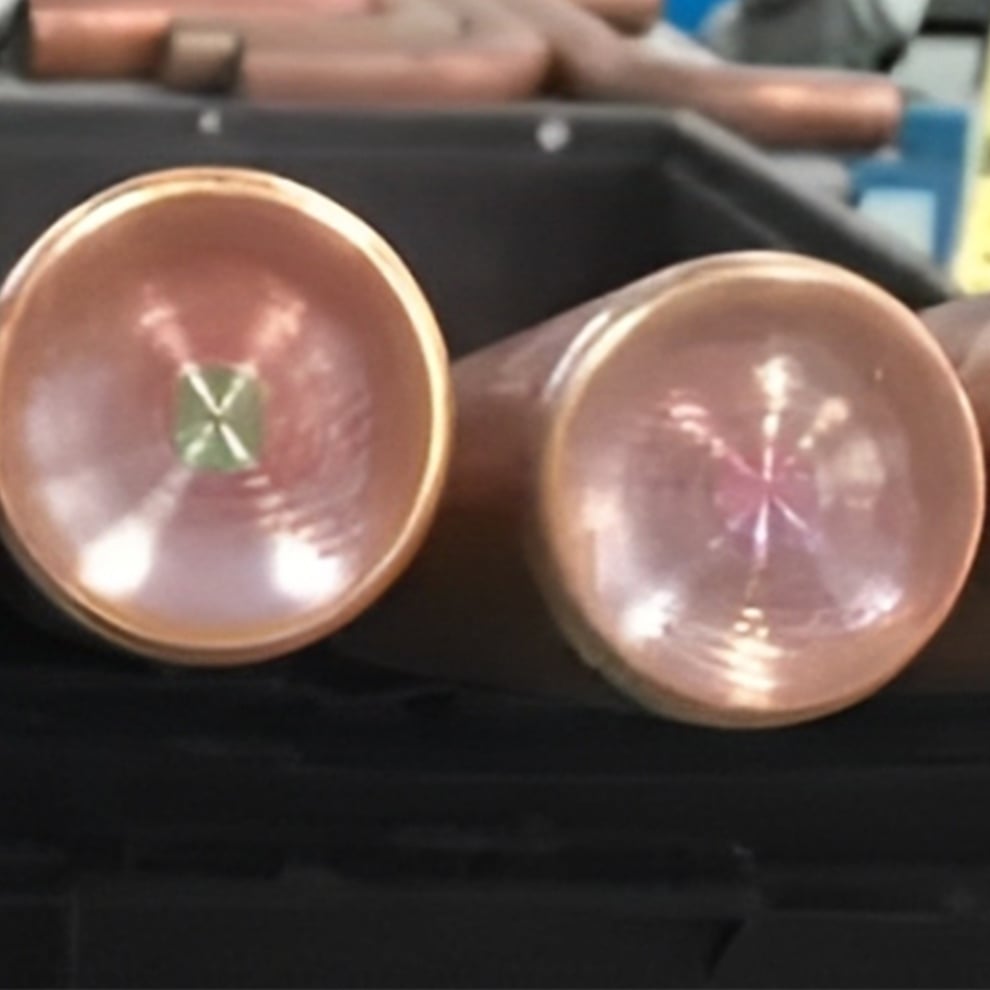

| Tube end closing shape | Flat shape | |
| Mold control | Servo motor with high precision | |
| Clamp power | Pneumatic power | |
| Motor power | 8Kw/10KW | |
| Working capacity | 25Seconds(∅50) | |
| Dimension | 2200*1000*1600mm | |
Features
A specialized non-rotational spinning solution for sealing copper tubes (up to Ø80mm, 0.6–2mm thickness) with flat-end closures. Designed for long pipes (>1m), it combines servo-driven mold control, pneumatic clamping, and PLC automation to achieve distortion-free sealing in 25 seconds/cycle—ideal for refrigeration, plumbing, and HVAC applications.
Non-Rotational Workpiece Safety
Unlike conventional spinning machines, the T-50 fixes the copper tube stationary while a rotating sealing tool applies pressure. This eliminates risks associated with spinning long workpieces (>1m) and accommodates fragile tubes that cannot withstand rotational stress.
Servo-Precision & Programmable Workflow
High-torque servo motors (8–10kW) drive both feed and mold positioning, ensuring ±0.05mm repeatability. Customizable PLC programs allow one-touch setup for diverse tube dimensions (Ø50–80mm) and batch requirements.
Universal Clamping Adaptability
Pneumatic-powered dies swiftly clamp tubes without marring surfaces. Quick-change mold adjustments enable seamless transitions between sealing flat ends or future profiles (e.g., domed shapes) with minimal downtime.
Compact Production-Ready Design
The rigid 2200×1000×1600mm structure integrates air-cooled hydraulics and failsafe sensors. Operators manually load/unload tubes while maintaining a 25-second cycle pace, supported by 380V three-phase power and 0.5MPa air pressure for factory compatibility.
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
