Copper Tube End Flaring Machine For Ac Connecting Pipe

Copper Tube End Flaring Machine For Ac Connecting Pipe

Manual feed the tube into exact position with pneumatic positioner.

Die clamping the tube with side cylinder push and positioner cylinder recover.

The rotating motor start work and flaring head move forwarder with cylinder drive.

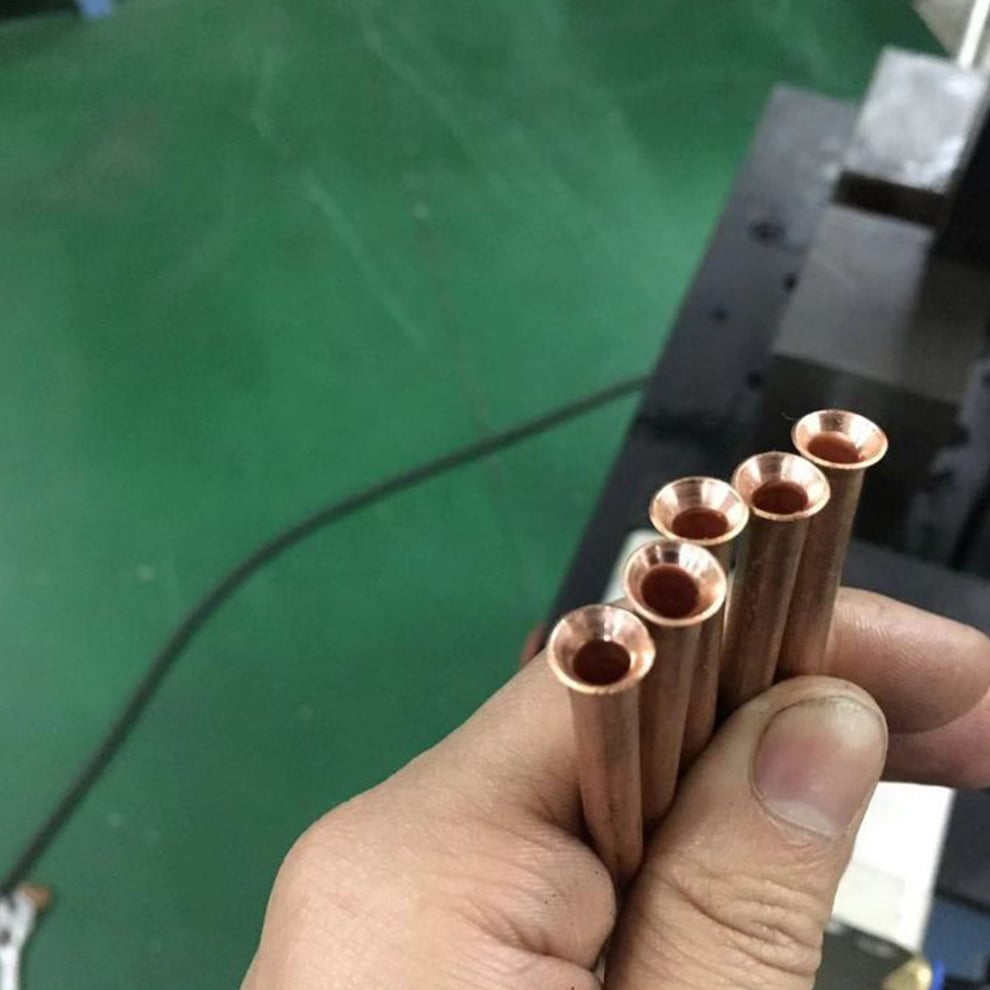

Tube end flaring work complete, flaring head backward and clamp die release.

Take off the finished tube and put next one for cycle work.

Inquiry Now

Introduction

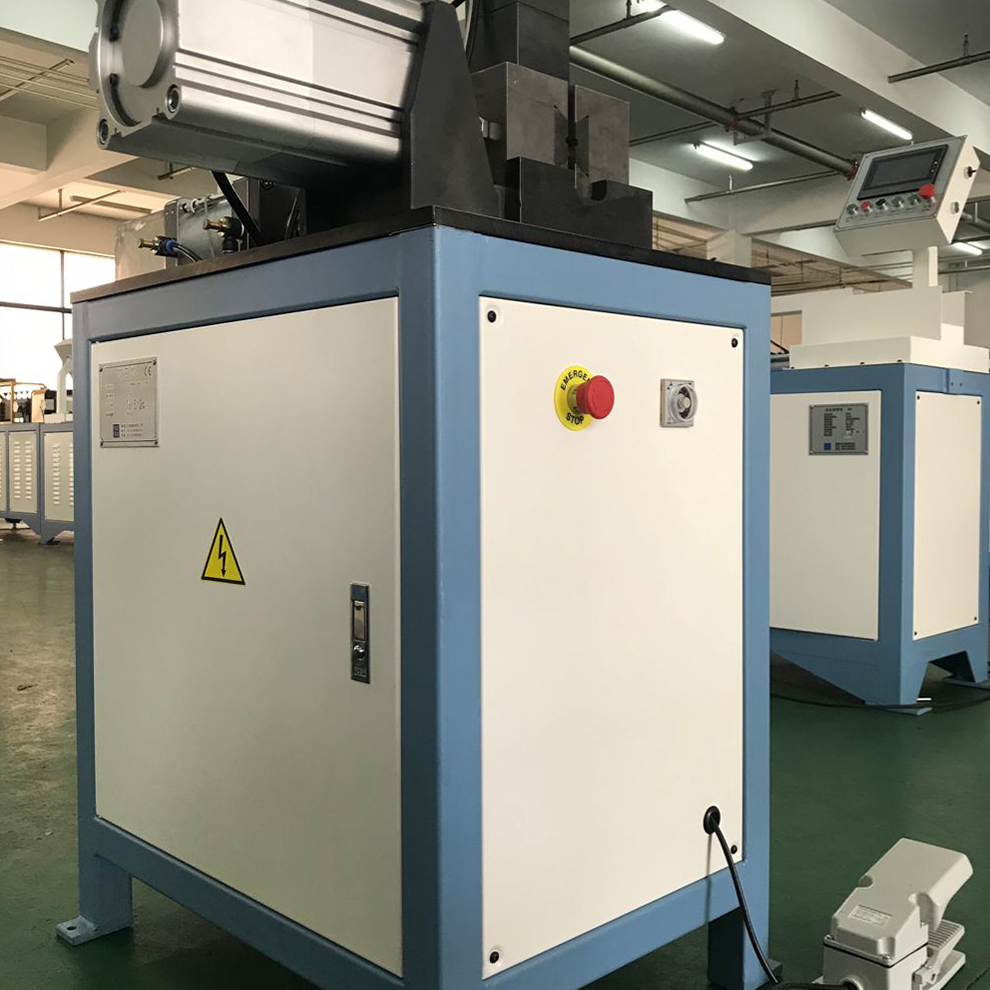

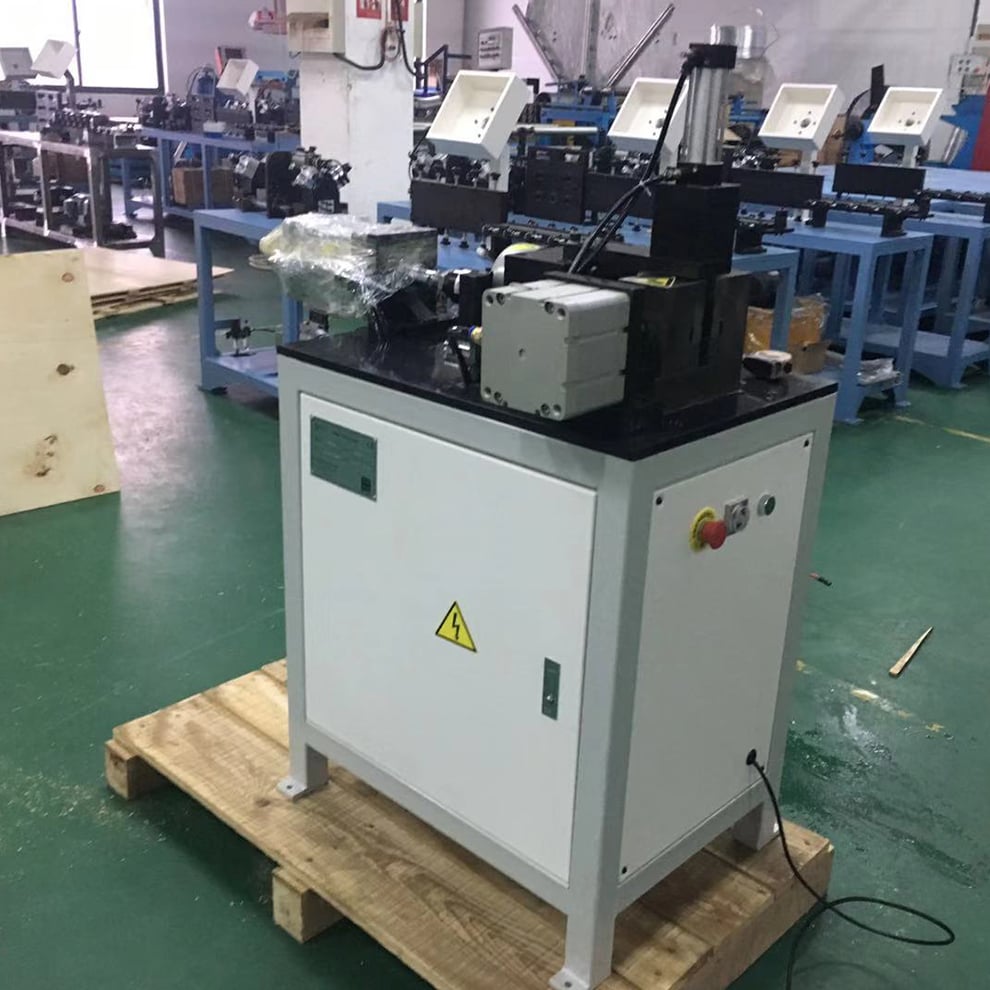

The Air conditioner connecting pipe end flaring machine is the new upgraded one with PLC control, which is more efficient and sate operation than before. With rotate flaring process, the surface will be more smooth and shinning for application. And the flaring depth is adjustable according to different tube size.

Parameter

Parameters	Data
Tube Material	Copper / Aluminum tube
Tube Diameter	4-20mm
Flaring Angle	15-60 degree
Flaring Angle	15-60 degree
Flaring Depth	1-35mm
Cutting Tolerance	+/-1mm/1m

Parameters	Date
Control System	PLC control / Pedal
Motor Power	About 0.5KW
Electric System	380V, 50Hz, 3Phae (Customized)
Dimension	1200x600x1300mm
Weight	260 KG

Application

WOT Condenserline

Filter Dryer Line

Mesabi Tube Line

Pancake Coil Line

FAQ

Does BoBo Machine offer components for replacement after waranty period?

Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.

What INCOTERMS does BoBo Machine accept?

All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.

Does BoBo Machine have OEM&ODM services?

Yes, we could provide private label or white label services. Customization services are available according to your demands.

Does BoBo Machine provide install and tuning services?

Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.

What other machines does BoBo Machine provide?

Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
