Dual line Capillary Tube Cutting Machine

Dual line Capillary Tube Cutting Machine

Two lines of tubes can be cut in same time for high efficient work.

PLC control system to control two work units separately for different tube size.

Chipless cutting withou burrs.

Inquiry Now

Introduction

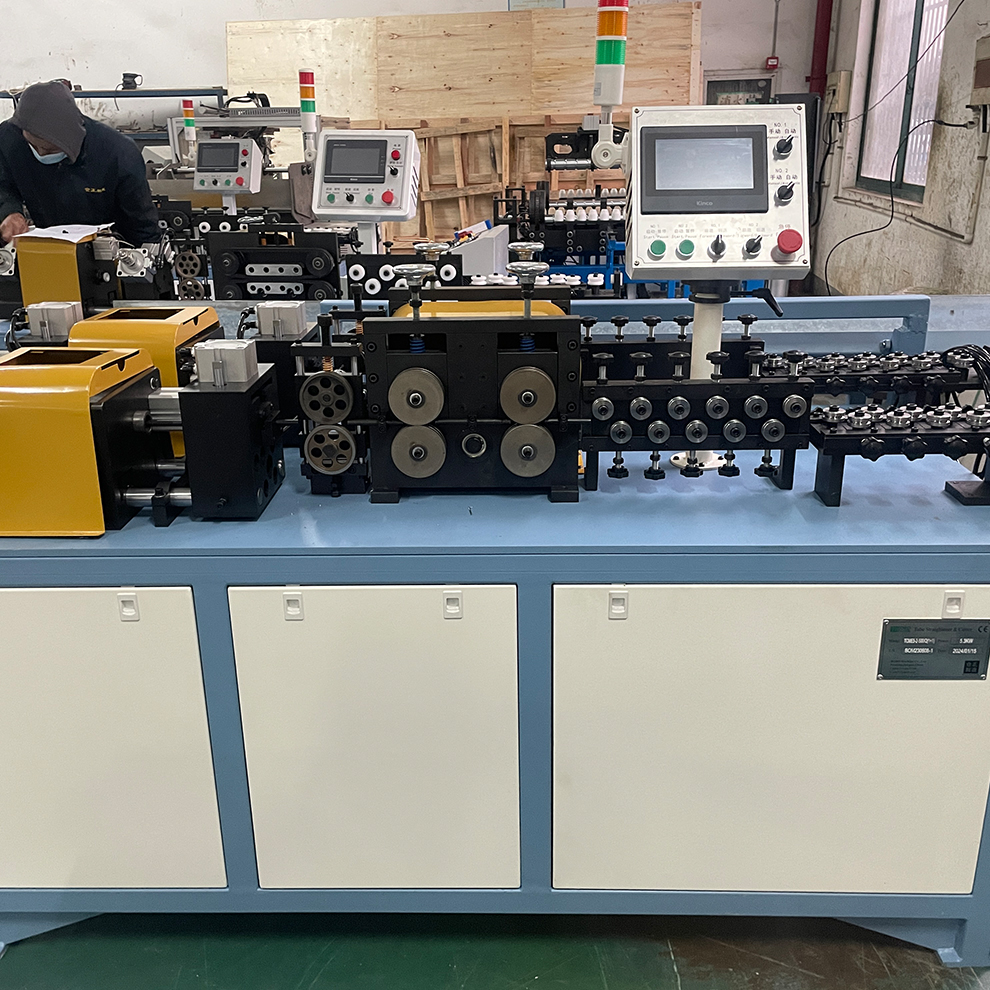

This two-line capillary tube cutting machine is special designed for copper capillary tube de-coiling, straightening, and cutting automatically. And two lines of tubes can be processed in the same time to improve the work efficiency.

Parameter

Item	Data
Model	KC-I
Suitable Material	Copper capillary pipe（in coil)
Tube Size	OD1.8-3.2mm
Cutting Length	>250mm
Cutting Accuracy	± 0.5mm
Work Speed	10s/1000mm
Control System	Touch Screen, Servo Motor,	Inverter Control

Item	Data
Work Method	Automatic & Manual Control
Working Pressure	0.5-0.7MPa
Power Supply	5.5KW
Power System	380V, 50Hz, 3Phase (Customized)
Dimension	4700x900x1350mm
Weight	About 800KG

Application

WOT Condenserline

Filter Dryer Line

Mesabi Tube Line

Pancake Coil Line

FAQ

Does BoBo Machine offer components for replacement after waranty period?

Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.

What INCOTERMS does BoBo Machine accept?

All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.

Does BoBo Machine have OEM&ODM services?

Yes, we could provide private label or white label services. Customization services are available according to your demands.

Does BoBo Machine provide install and tuning services?

Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.

What other machines does BoBo Machine provide?

Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
