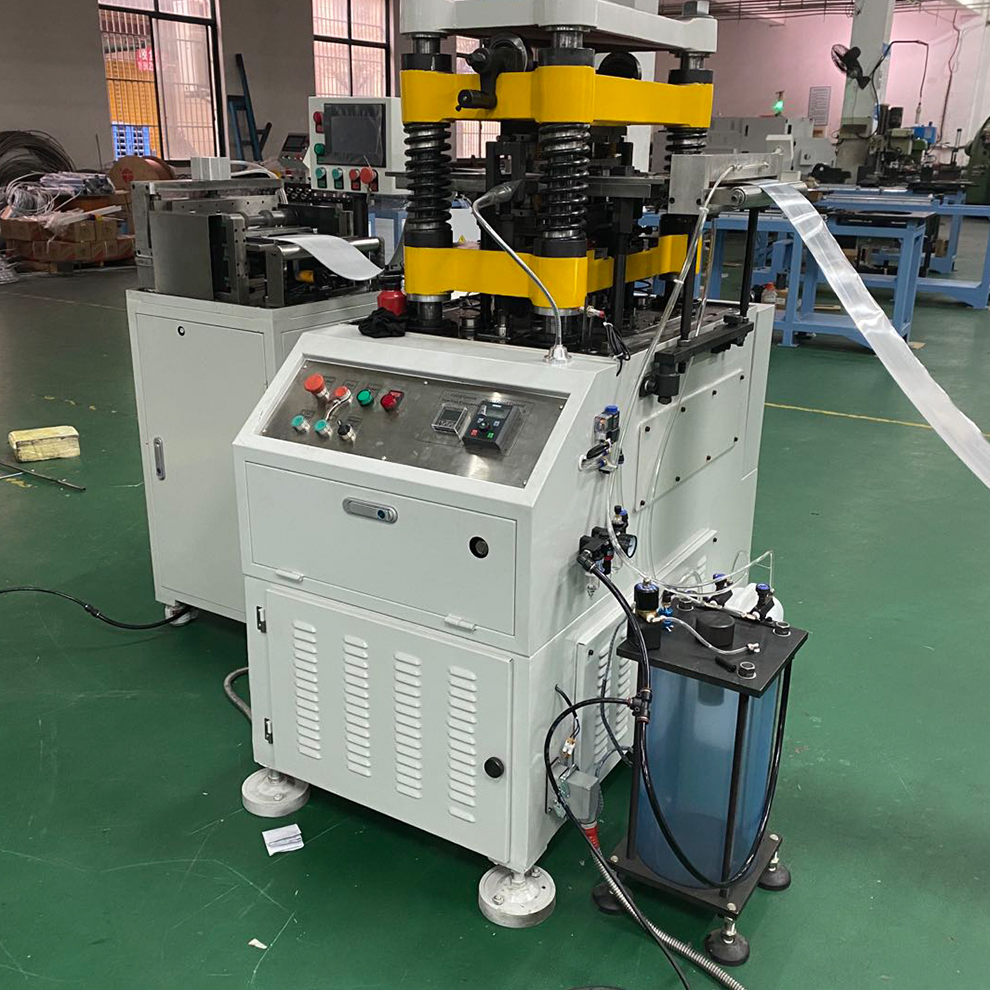

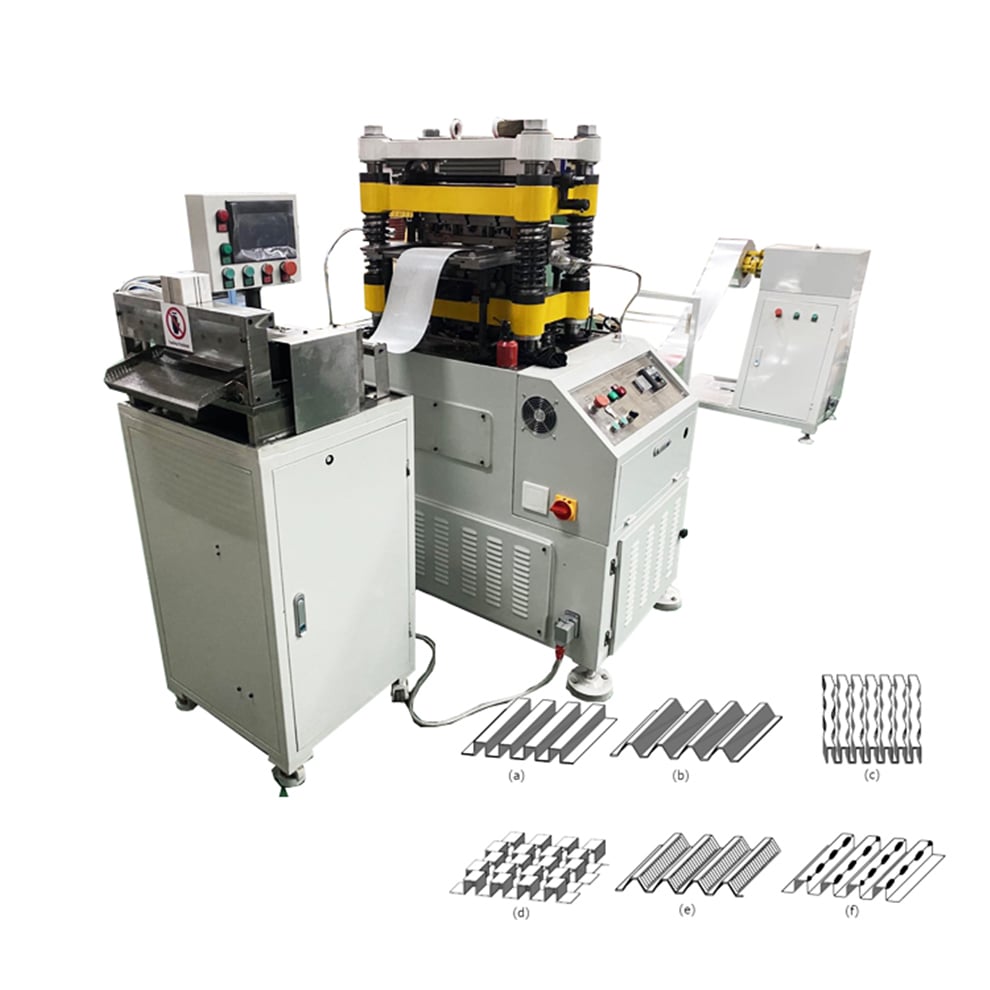

Fin Stamping Press Machine P-300/450
The spindle is centered to reduce the loss during the force transmission process.
High precision. The flatness of the extreme position of the upper and lower die tables and the flatness during the movement the die table are higher than those the similar products.
Automatic lubrication system.
Stepless adjustment.
Compact structure, easy to operate.

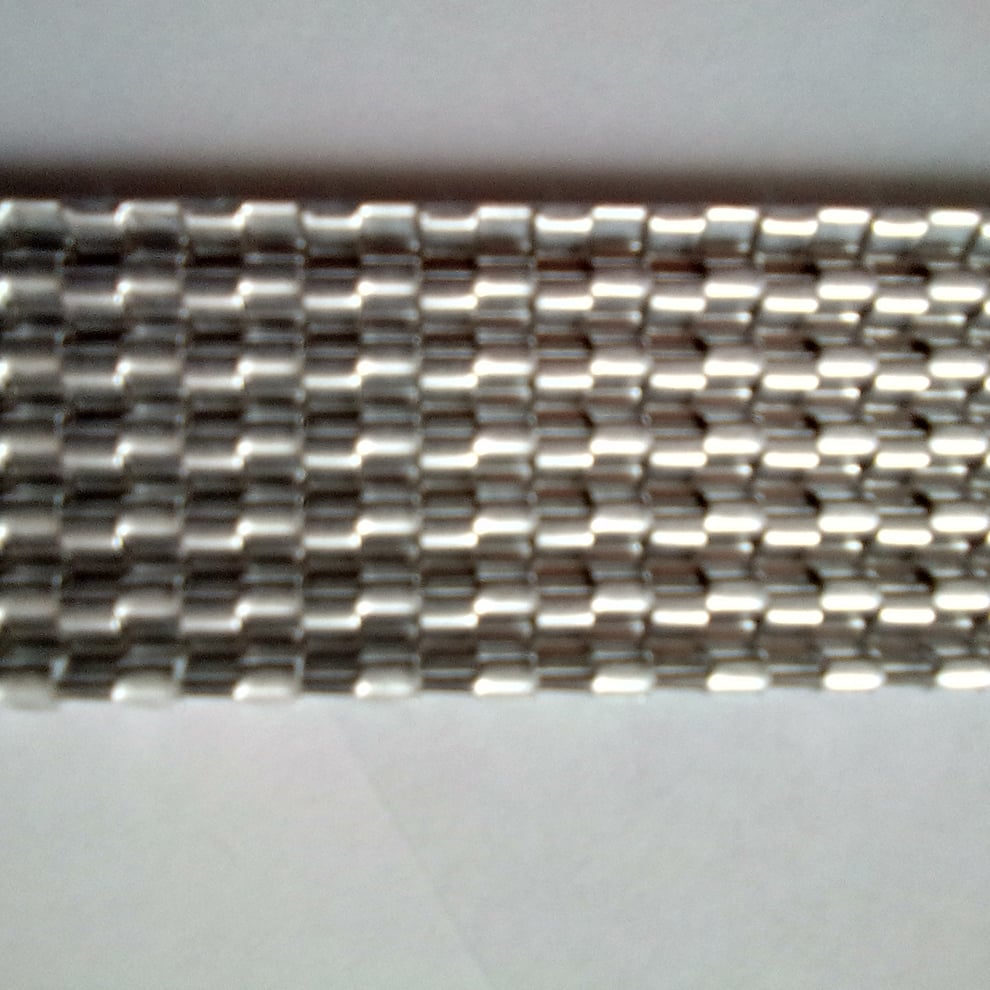

The fin forming machine is a special processing equipment for processingheattransfer fins, a key component of heat exchangers. Compact heat exchangers made up of such heat transfer fins have been used in a wide range of applications in the automotive, marine, air conditioning, compressor, construction machinery,miningmachinery, aerospace, military and hydraulic oil cooling industries.
Parameter
Parameter | Data | |
|---|---|---|
| Control Decoiller speed | 0-5000mm | |
| Decoiller running rate | 0-20 | |
| Times/Min Coil inner diameter | 150mm+/-10mm Coil Max | |
| Diameter | 1400mm | |
| Coil max width | 450mm | |
| Motor power | 0.75 KW | |
| Loading weight | 1000KG | |
| Weight | 120KG | |
| Dimension | 1050*650*1100mm | |
Parameter | Data | |
|---|---|---|
| Servo cutter width | 10-300mm | |
| Cutting rate | 60 times/Min | |
| Cutting height | 0-14mm | |
| Air pressure | 0.5-0.8mm | |
| Air pressure | 0.4-0.6Mpa | |
| Weight | 110Kg | |
| PLC | Mitsubishi | |
| Touch screen | Delta | |
Features
A precision-engineered 1.8T-capacity hydraulic press designed for high-throughput stamping of heat exchange fins (1–12mm height) across automotive, aerospace, and HVAC sectors. Driven by Mitsubishi PLC and Delta HMI, this 1400×1000mm unit achieves ±0.01mm wave tolerances at 120 cycles/min, featuring 60dB noise suppression, automatic lubrication, and stepless servo cutting (60 chops/min) under 3KW power consumption.
Zero-Loss Force Transmission
Centralized spindle architecture minimizes kinetic energy waste, maintaining <0.03mm bed deflection under 6-ton stamping loads while reducing motor wear—achieving 24/7 runs at 35–120 adjustable strokes without mechanical gear limitations.
Adaptive Die Intelligence
Quick-swap tooling system enables single-operator die changes in under 5 minutes, supporting 300mm fin width flexibility with auto-lubricated guides and mold-height micro-adjustment for seamless transitions between 12×10mm pitch patterns.
Eco-Performance Optimization
Energy-recovery circuits cut idle power draw by 40% versus conventional presses, while 60dB sound-dampened frames and closed-loop oil filtration comply with ISO 14001 workshop noise/emission standards.
Failure-Proof Production Guardrails
Real-time load monitoring halts operations if servo cutters exceed 14mm stack heights, paired with Mitsubishi FX5U PLC diagnostics that predict bearing fatigue via lubrication pressure analytics—slashing unplanned downtime by 30%.
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
