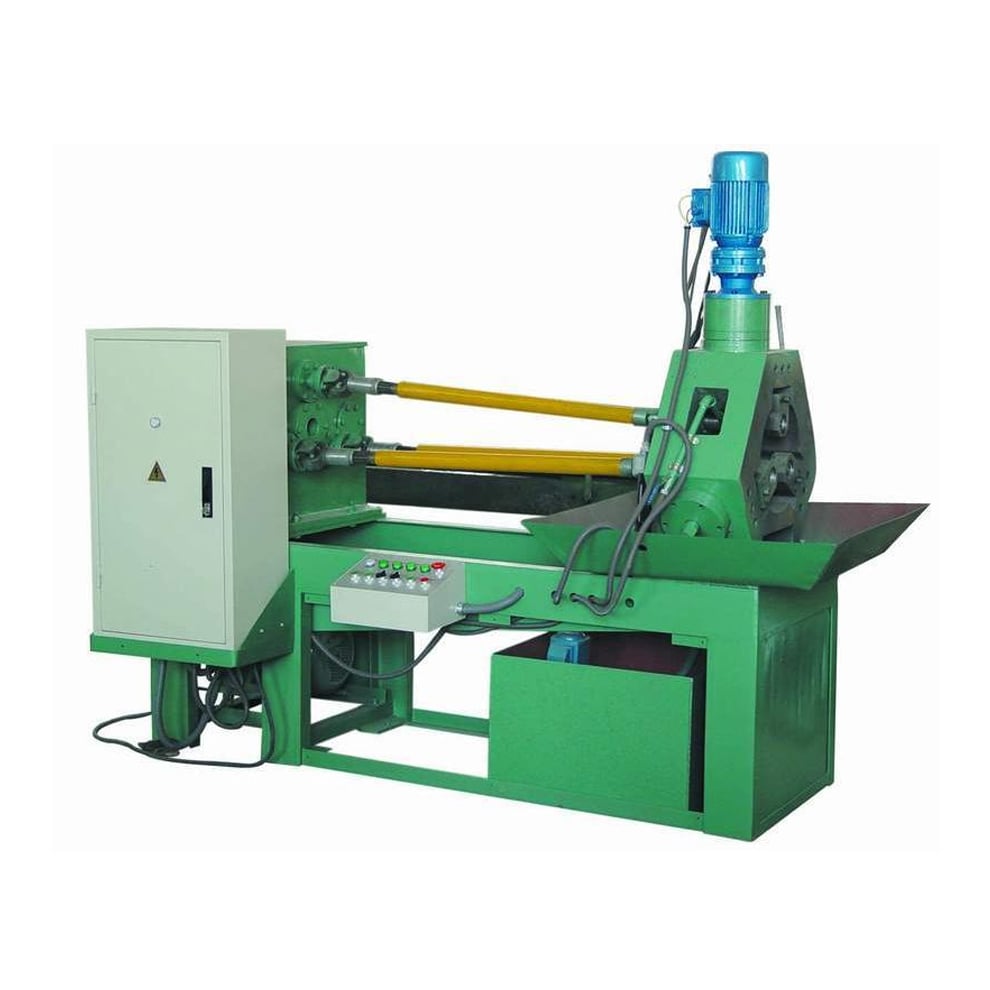

Fin Tube Extruding Machine E-32

Fin Tube Extruding Machine E-32

Applicable to different materials of pipes. Copper pipe and aluminum pipe.

Rolling and compounding through the cutter in the equipment, extruding fins in one go.

Increasing the heat exchange area.

Inquiry Now

Introduction

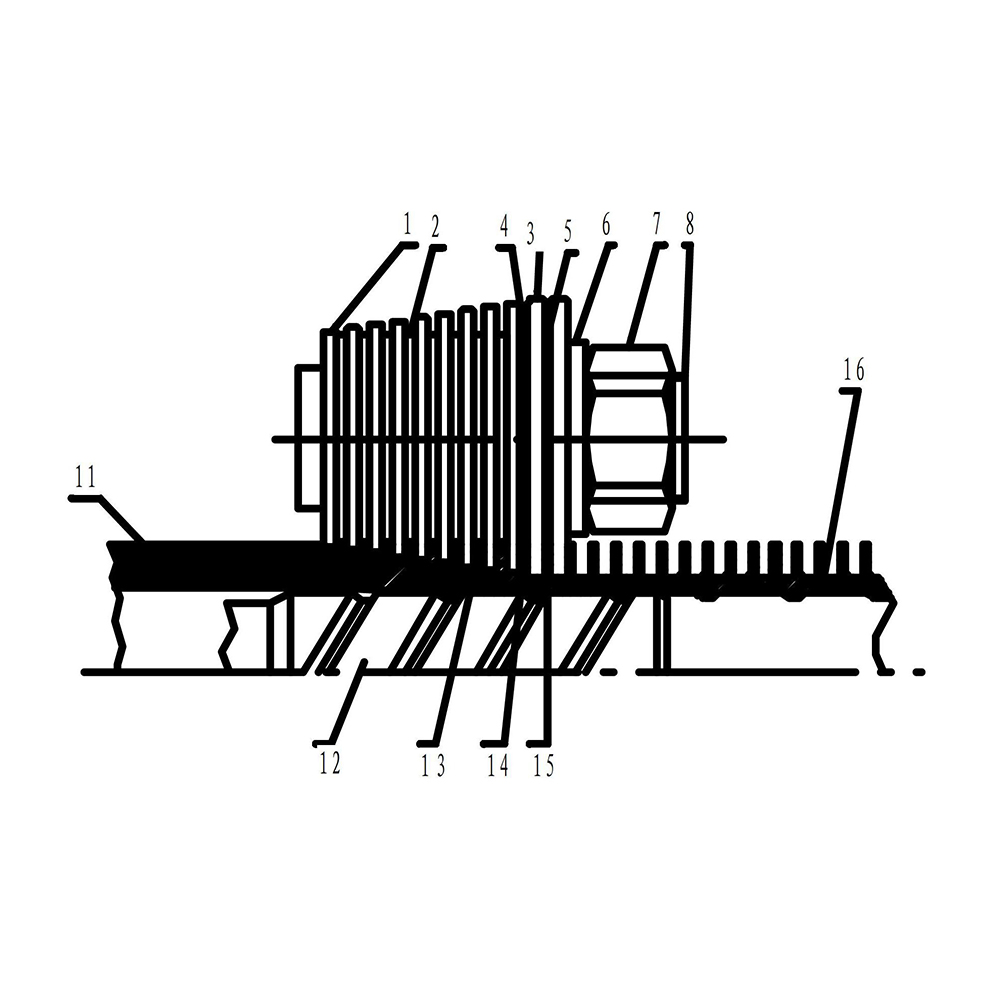

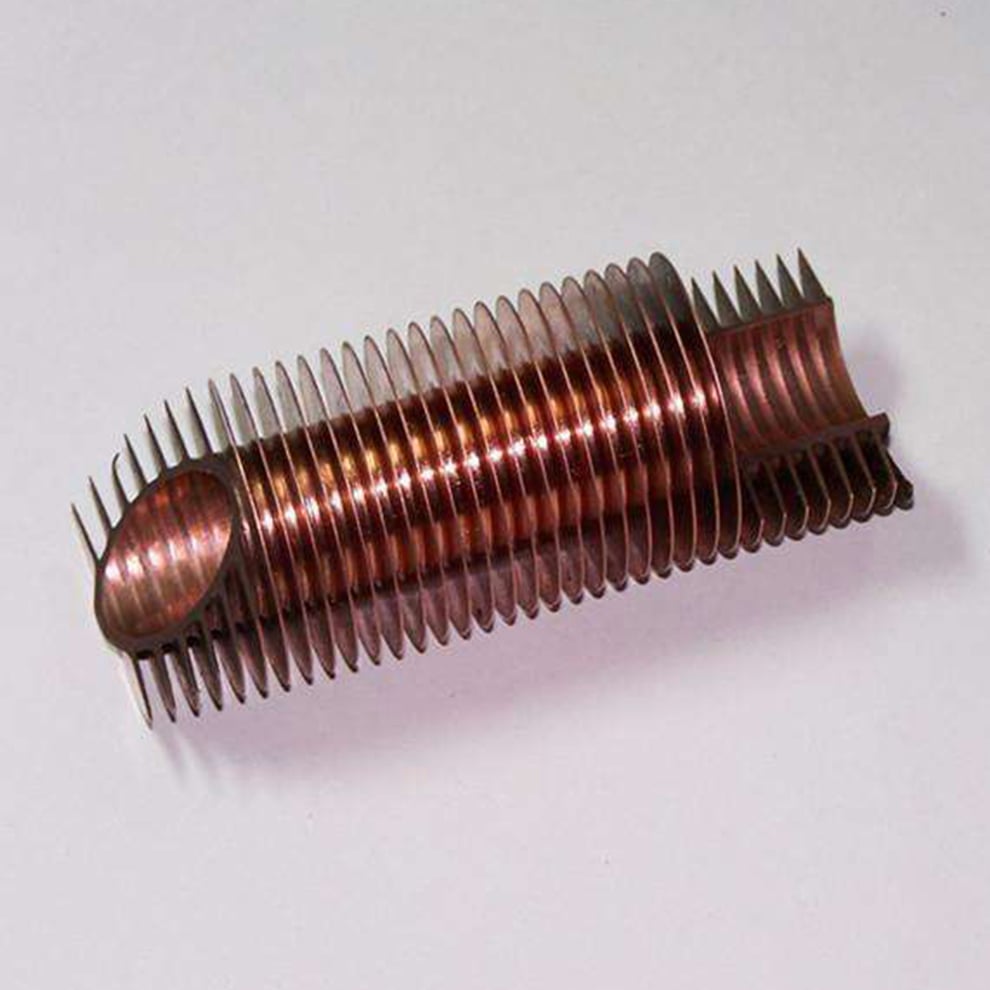

The finned tube machine is a copper tube or a steel tube (also known as a base tube) lined with aluminum pipes of different specifications, which is rolled and composited by the cutters in the unit, and the ribs are extruded at one time, so as to achieve the effect of increasing the heat exchange area.

Parameter

Item	Data
Suitable diameter of base tube	ɸ7~ 11 mm/ɸ12~ 32 mm /ɸ15 ~45mm
Outer diameter of finned tube	ɸ25mm /ɸ64mm /ɸ77mm
Suitable base tube materials	Aluminum, steel, copper
Suitable fin materials	Aluminum, copper
Fin thickness	0.3~0.45mm
Fin height	≤7mm /16mm / 16mm
Spiral pitch	1.8 mm; 2.0 mm; 2.1 mm; 2.3 mm; 2.5 mm; 2.8 mm; 3.0 mm; 3.2 mm ~ 8.0 mm

Item	Data
Finned tube length	0-15m
Output spindle rotating speed	80rpm, 100rpm,120rpm (by changing pulley)
Fin rolling speed	0.6m/min,0.75m/min,0.9m/min
Main driving motor power	11kW
Machine weight	About 1920kg
Cooling pump model	DB-25, 120W

Application

WOT Condenserline

Filter Dryer Line

Mesabi Tube Line

Pancake Coil Line

FAQ

Does BoBo Machine offer components for replacement after waranty period?

Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.

What INCOTERMS does BoBo Machine accept?

All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.

Does BoBo Machine have OEM&ODM services?

Yes, we could provide private label or white label services. Customization services are available according to your demands.

Does BoBo Machine provide install and tuning services?

Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.

What other machines does BoBo Machine provide?

Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
