G-type Condenser Bending Machine

Servo CNC, positioning accuracy, bending smooth.
High degree of automation, easy to operate.Easy to rewind.
Easy to replace the bending radius.
Inquiry Now

G-type condenser bending machine for the air-conditioning outdoor unit condenser bending into a certain angle, “G” or “U” or “L” type to meet the overall design and air conditioner production process.

Parameter

Item
Specification
ModelCDBM1500/3C
Thickness12.7-22mm/foil；Max 3 foil
Bending inner arc radiusR85 (Pending)
Bending Angle0—105˚，setting
PrecisionBending±0.1°, plat height±0.1 mm
Control MethodJob、Manual, Auto
Max width1500 mm
Bending RangeAs drawing
Item
Specification
Holder stroke0-225mm
Moving stroke0-250
Feeding Stroke0-750mm
Voltage380V 50Hz 3Ph or free customizeation
Working cycle12—15S/bending
Pressure0.4—0.6Mpa
Power380V 50Hz 3 Phase
Motor≤6kw
WeightAbout 1800Kg

Application

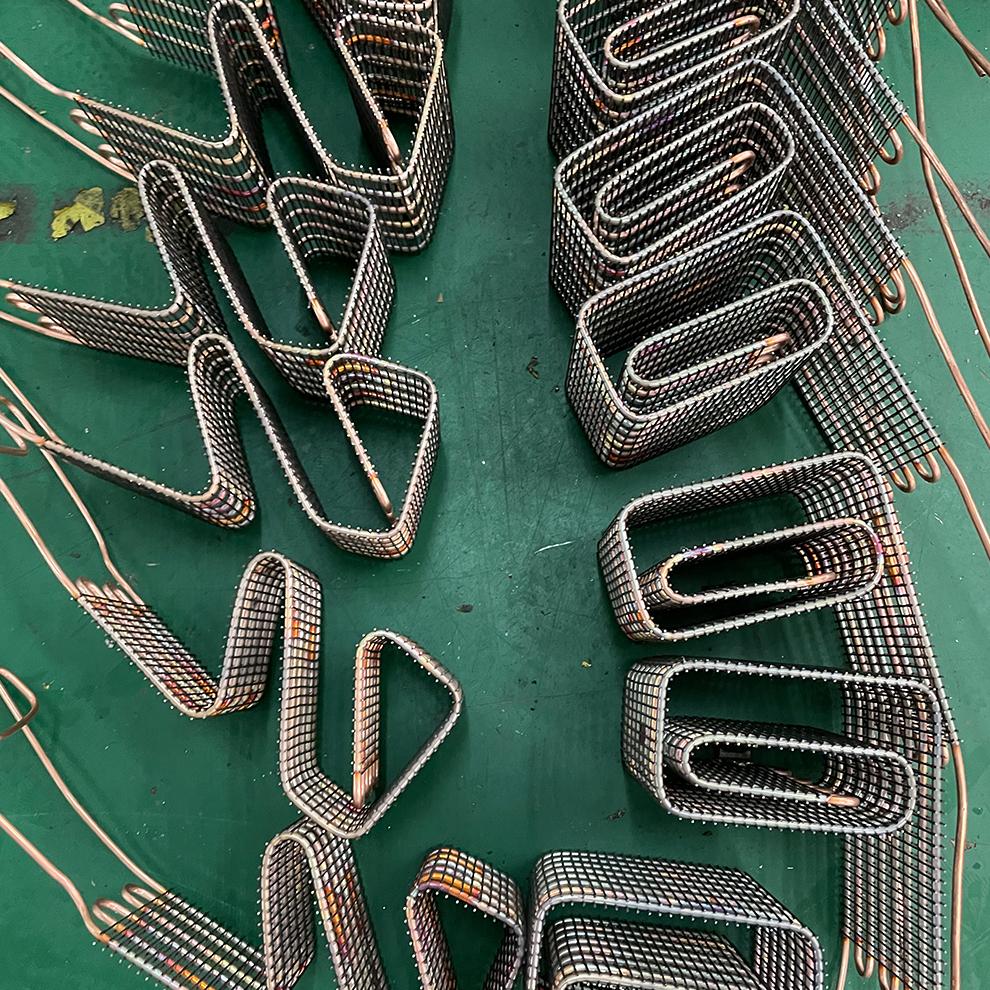

WOT Condenserline

Filter Dryer Line

Mesabi Tube Line

Pancake Coil Line

FAQ

Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.

All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.

Yes, we could provide private label or white label services. Customization services are available according to your demands.

Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.

Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
