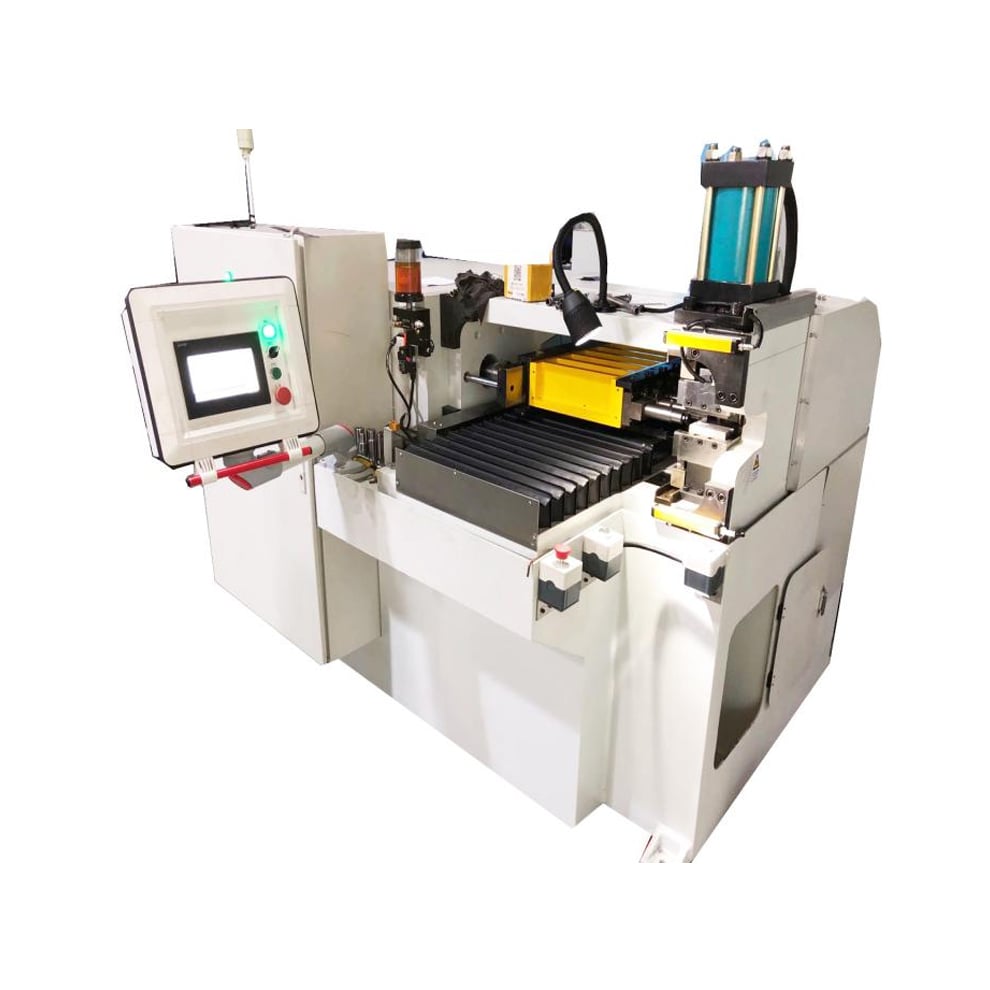

Multi-Station Tube End Forming Machine TEF-25T
Multi-stations enable to meet types of tube end forming.

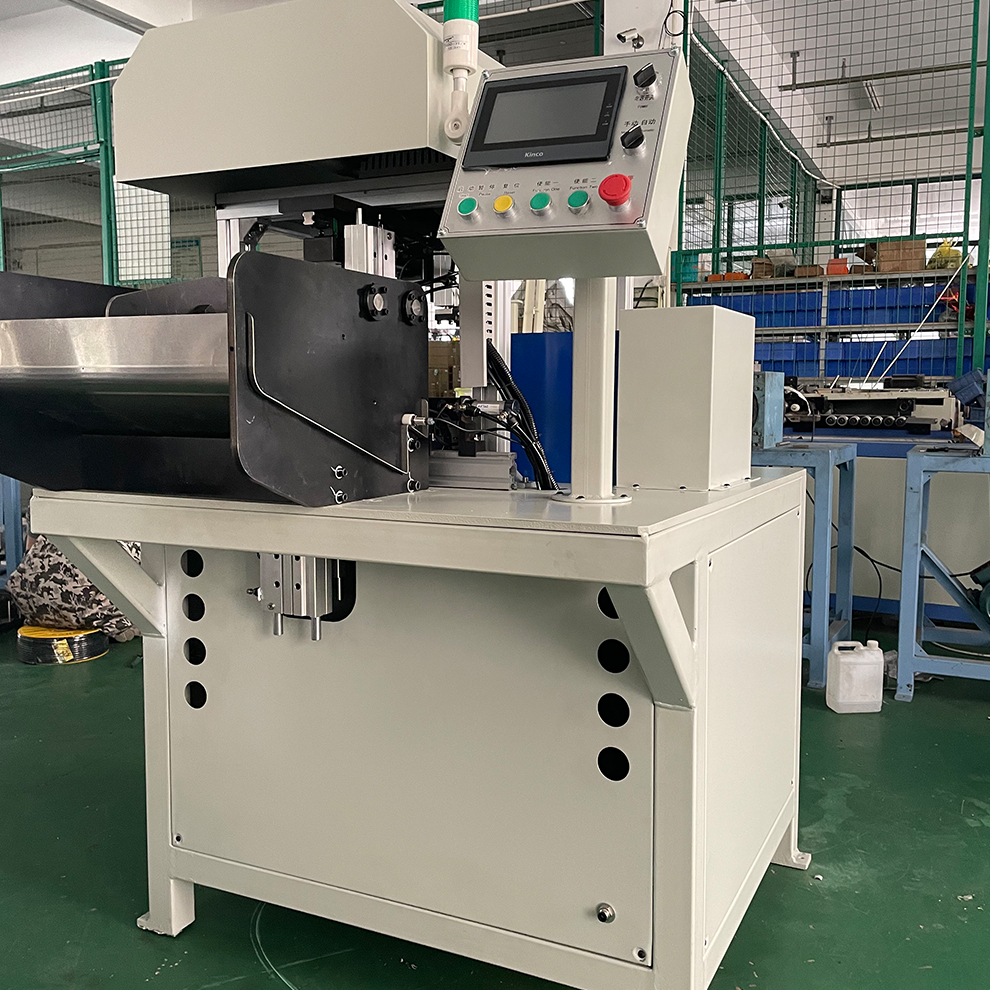

Auto loading device to save time and labor.
The feed motion is driven by Siemens servo motor with high precision.
Front and rear positioning function.

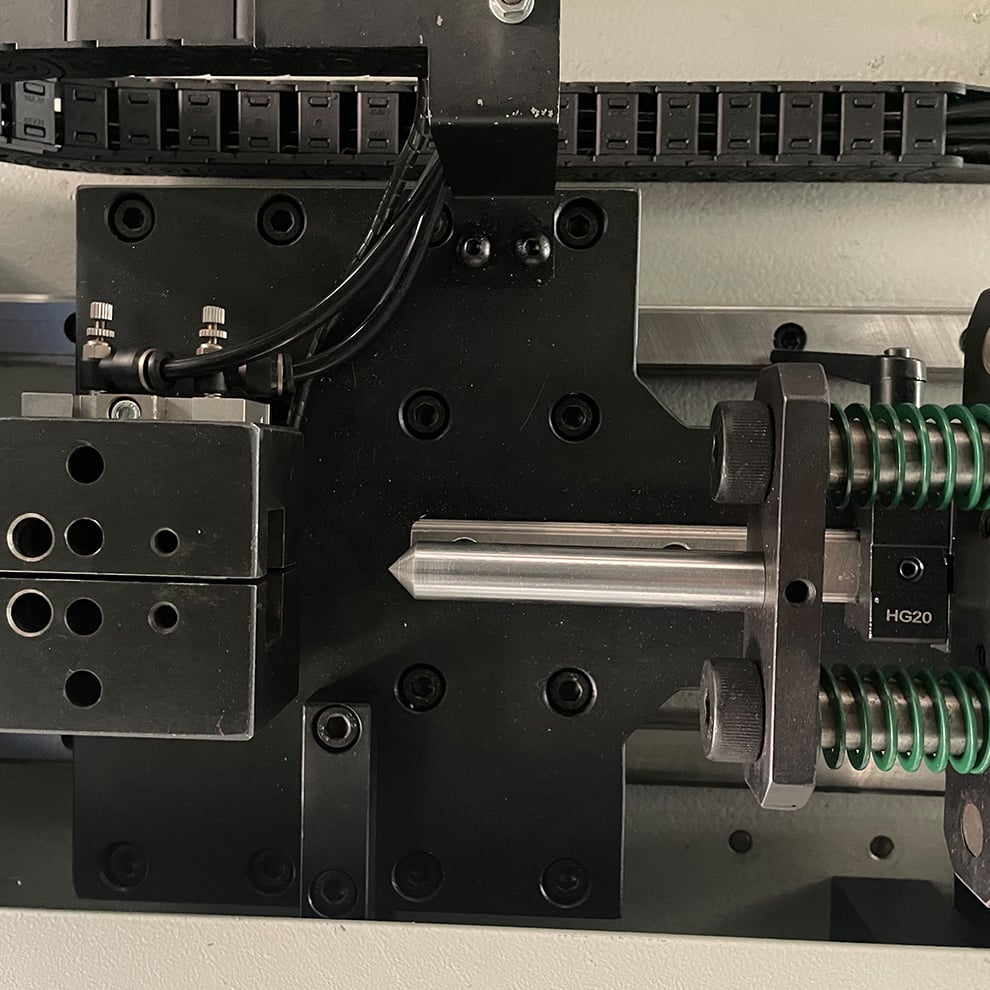

The multi-station tube end forming machine is a tube end forming machine with multiple mold stations. The horizontal design of the forming machine can select 1 to 10 mold stations, clamp the workpiece with the cylinder, push the hydraulic cylinder The molding die advances, and the end portion of the pipe member is formed by extrusion of the die, and the utility model can simultaneously have the functions of expansion, contraction, pier, and rotation. Usually used in aircraft ducts, auto parts, air conditioning pipe fittings, hardware products and other industries.
Parameter
Model/Item | TEF6T | TEF8T | TEF12T | TEF25T | TEF50T | |
|---|---|---|---|---|---|---|
| Max OD | 4-26mm | 38mm | 42mm | 60mm | 80mm | |
| Max Thickness | 2mm | 2.5mm | 3mm | 4mm | 6mm | |
| No. Stations | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Max Stroke | 80mm | 100mm | 140mm | 170mm | 200mm | |
| Width of Grooving | 0-25mm | 0-30mm | 0-35mm | 0-45mm | 0-60mm | |
| Servo motor | 1.5kw | 2.0kw | 2.5kw | 3.0kw | 5.5kw | |
| Max. Force | 600KN | 800KN | 1250KN | 1850KN | 3000KN | |
| Concave Die Punching Stroke | 200mm | 250mm | 320mm | 380mm | 440mm | |
Features
A precision-engineered horizontal tube end former for expanding, contracting, grooving, and crimping pipes (Ø4–80mm) in 3–6 seconds per cycle. Combines a modular 6-station design (incl. rotary station) with hydraulic clamping, Siemens CNC automation, and integrated lubrication to deliver high-volume production for automotive, HVAC, and hydraulic systems.
Multi-Station Versatility
Execute up to 6 sequential operations (expansion, swaging, grooving, etc.) in one setup. The rotating station enables complex multi-angle forming, while horizontal mold movement ensures precise alignment (±0.1mm).
Siemens Precision Control
Siemens CNC system and servo-driven feed guarantee micron-level accuracy. Programmable recipes allow rapid job changes, and the counter function tracks production batches for traceability.
Production-Optimized Systems
Lubrication & Cooling: Independent oiling system reduces friction, while hydraulic thermoregulation (≤55°C) ensures 24/7 stability. Debris Management: Compressed air blasts clear chips after each cycle.
Safe & Flexible Operation
Toggle between manual jog mode (for setup) and foot-pedal automation. Emergency stop, dual clamping sensors, and ISO-compliant guarding prioritize operator safety during high-speed runs (20+ pcs/min).
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
