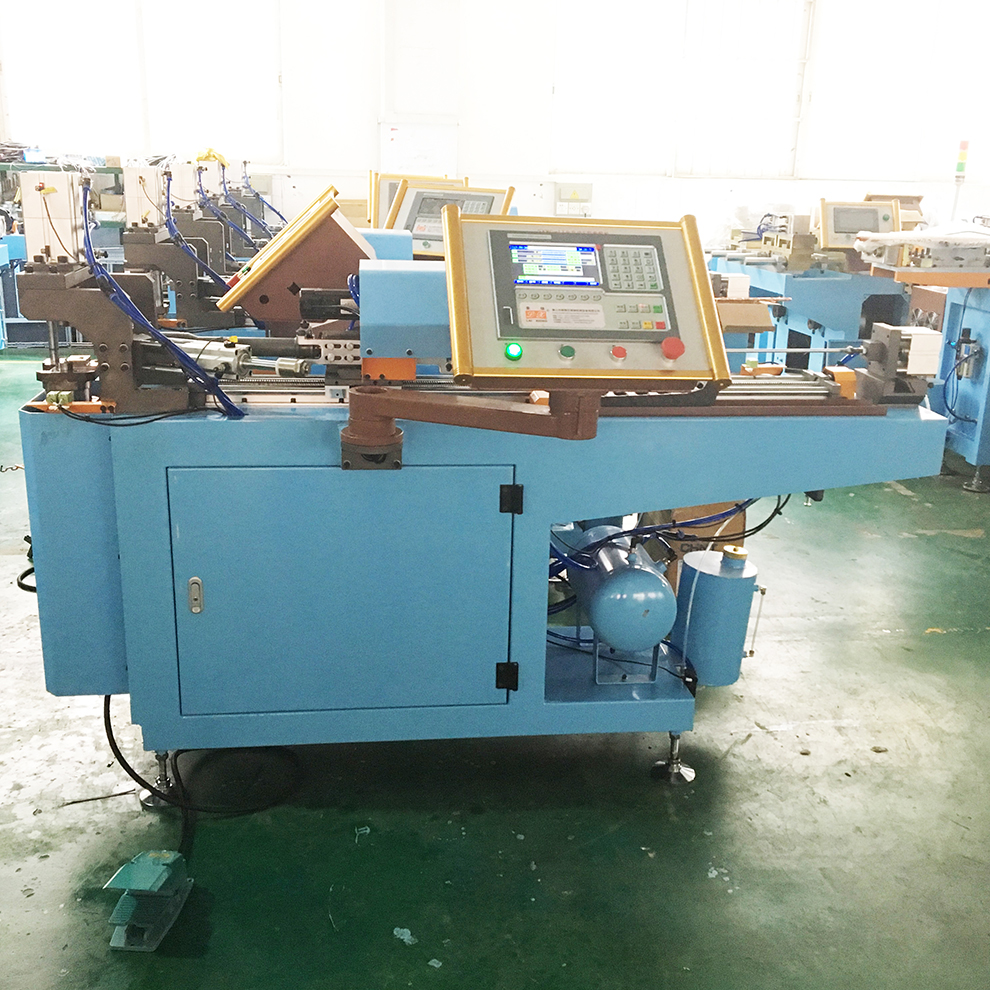

Semi-auto U Return Bender
Fast mold change, reliable model.
Three-axis servo linkage programming.
Good product consistency and accurate processing.
Automatic U return tube bending machine is a special automatic equipment which can automatically and continuously bend small U-tube or cross tube for copper aluminum tube.
Parameter
Item | Specification | |
|---|---|---|
| Tube diameter | Ñ„5/Ñ„7/Ñ„7.94/Ñ„9.52/Ñ„12.7/Ñ„15.88 | |
| Precision of the central pitch | Central pitch±0.1Oval rate≤10％ | |
| Cutting speed | 5 seconds /time | |
| Max cutting length | 600mm | |
Item | Specification | |
|---|---|---|
| Air pressure | 0.4-0.5mpa | |
| Controller | logical circuit | |
| Electric Power | 380V (customized) | |
| Motor power | 1.1KW | |
Features
Optimized for tight-radius bends in Ø4–15.88mm tubes (pneumatic/hydraulic models), this servo-driven system delivers ±0.1mm pitch accuracy and ≤10% ovality at 7,000–8,000 pcs/shift throughput. Processes U-shaped profiles with <38.1mm center distances, 180° bends in 1.5s, and cuts <600mm lengths in 5s – engineered for refrigeration coils, micro-heat exchangers, and compact hydraulic fittings.
Micro-Tolerance Bending Dynamics
Three-axis servo linkage maintains ±0.05° bend angle accuracy even at R7–R30 radii (±0.1mm positional tolerance). Logic-controlled mandrel system compensates for springback on thin-walled tubes (≥0.3mm thickness).
High-Density Small U-Profile Optimization
Dedicated for mini U-spans (12.7–38.1mm center distance): Auto-calibration jaws handle Ø4–13mm tubes pneumatically, while hydraulic mode supports Ø15.88mm heavy-wall tubing without deflection.
Rapid-Change Tooling Ecosystem
Swap bending dies/cutters in 5,000 units (Ovality SD ≤0.8%).
Energy-Smart Production Scaling
2kW motor + 1.1kW cutting drive operates at 0.4–0.6MPa air pressure (7.3m³/h max). 1.5×0.72m footprint fits lean lines, producing ≥875 pcs/hour at 350kg machine weight.
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
