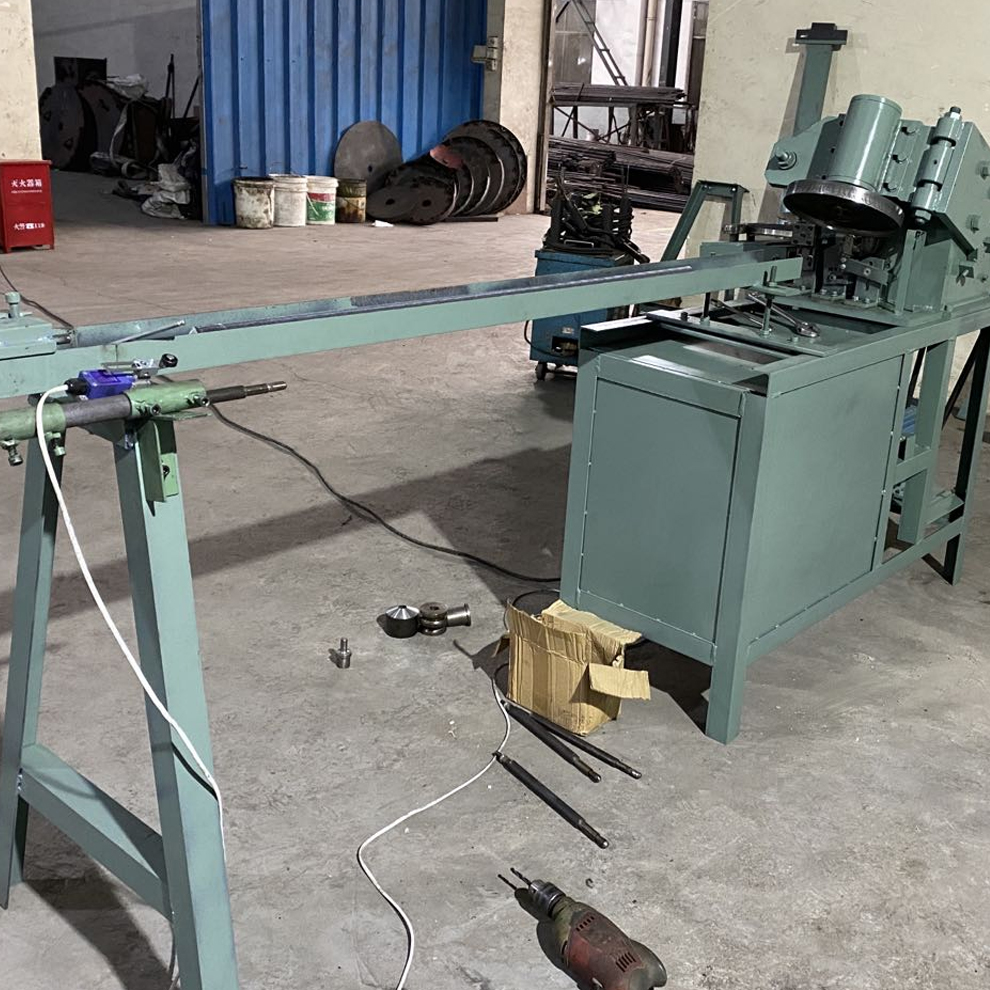

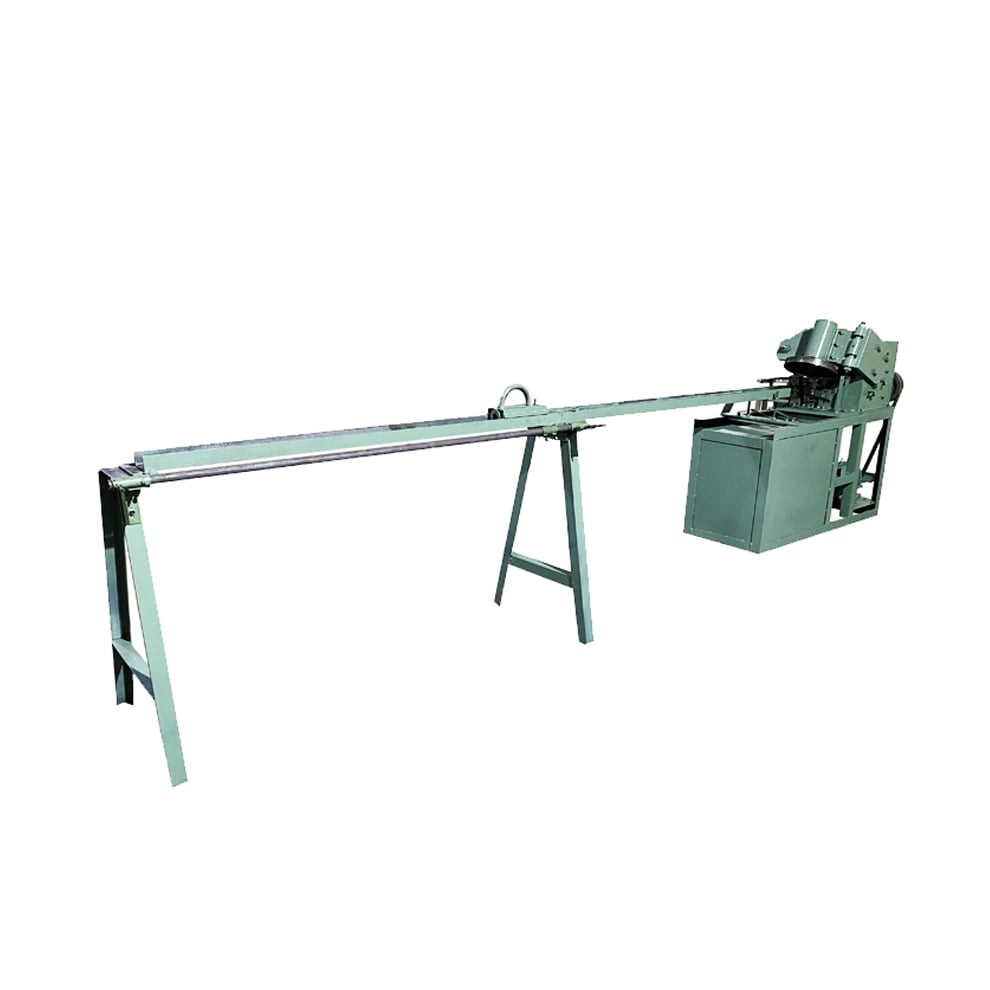

Spiral Fin Tube Winding Machine

Spiral Fin Tube Winding Machine

Efficient winding process.

Automatic spiral forming.

Protective base tube for durability

Inquiry Now

Introduction

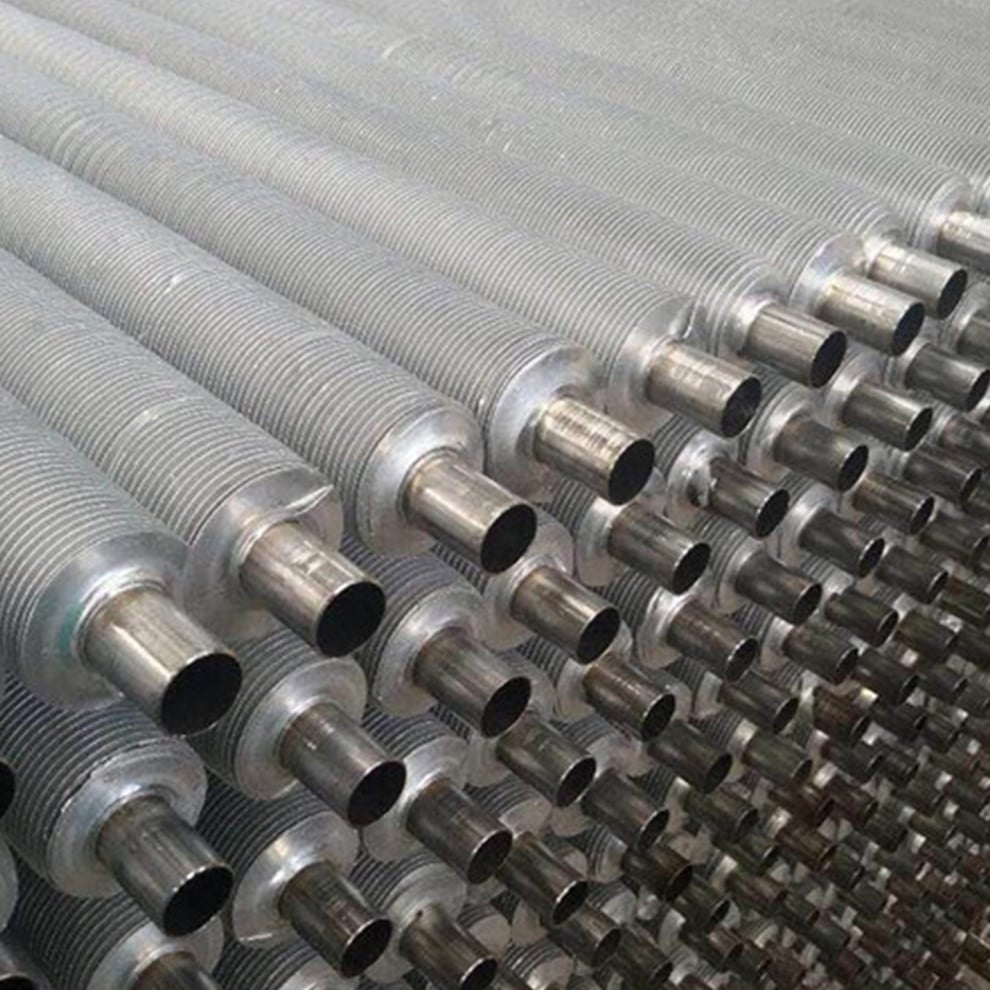

The winding process is adopted, the production efficiency is high, the sheet pitch is uniform, the heat transfer property is good, the wing ratio is high, and the base pipe can be protected from air erosion. The device can automatically spirally wrap the aluminum strip, roll it into an L-shape, and then wrap it around the steel tube or copper tube without wrinkles.

Parameter

Parameter	Data
Basic tube	Aluminum. Steel, Stainless steel, Copper.
Switch	Manual
Fin coil	Max OD diameter 600mm
Fin shape	L type

Parameter	Data
Speed	40 Meters per Hour
Weight	560KG
Dimension	2100* 900* 1350mm

Application

WOT Condenserline

Filter Dryer Line

Mesabi Tube Line

Pancake Coil Line

FAQ

Does BoBo Machine offer components for replacement after waranty period?

Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.

What INCOTERMS does BoBo Machine accept?

All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.

Does BoBo Machine have OEM&ODM services?

Yes, we could provide private label or white label services. Customization services are available according to your demands.

Does BoBo Machine provide install and tuning services?

Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.

What other machines does BoBo Machine provide?

Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
