Steel / Bundy Tube Straightening & Chipless Cutting Machine
Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
High Precision Straightening and cutting.

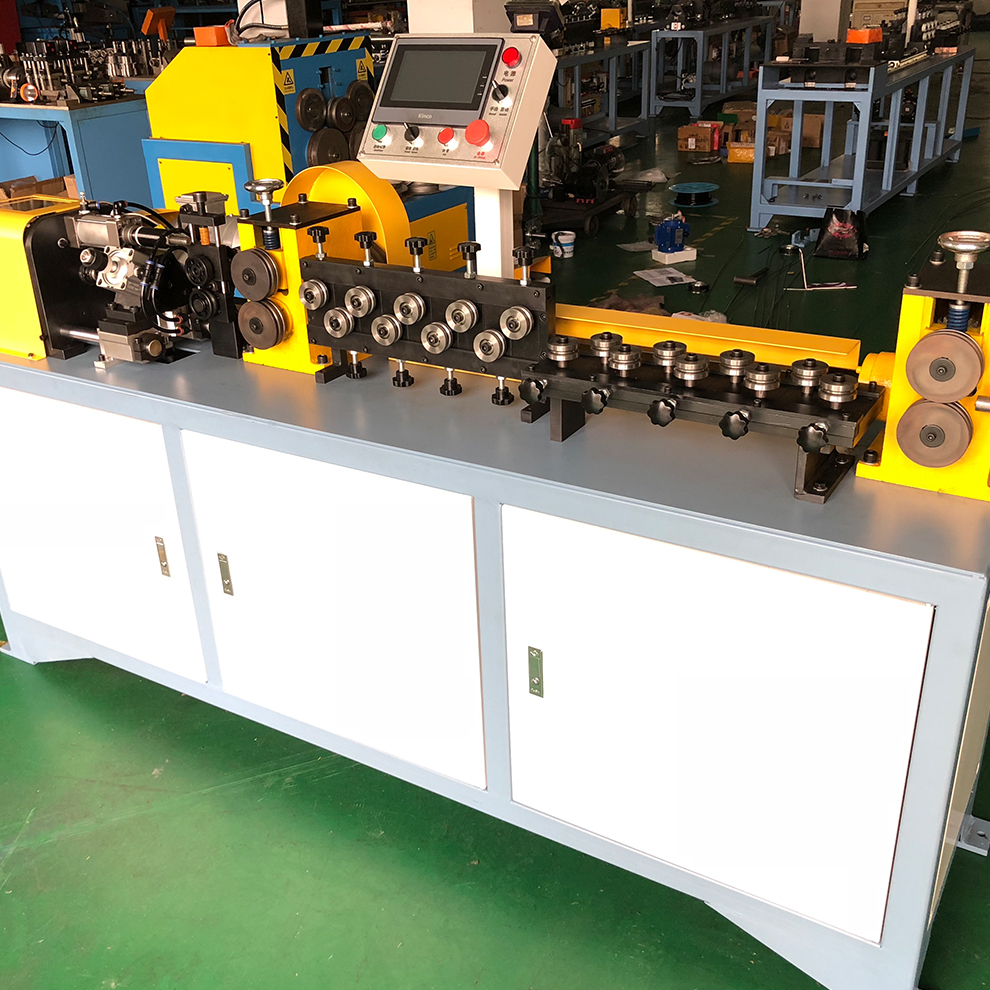

Straightening wheel work on the steel tube from both vertical and horizontal directions.
Bent or coiled tubes can undermine performance. Our straightening wheels flawlessly correct bends using a high-accuracy process that guarantees concentricity for subsequent joining or installations.

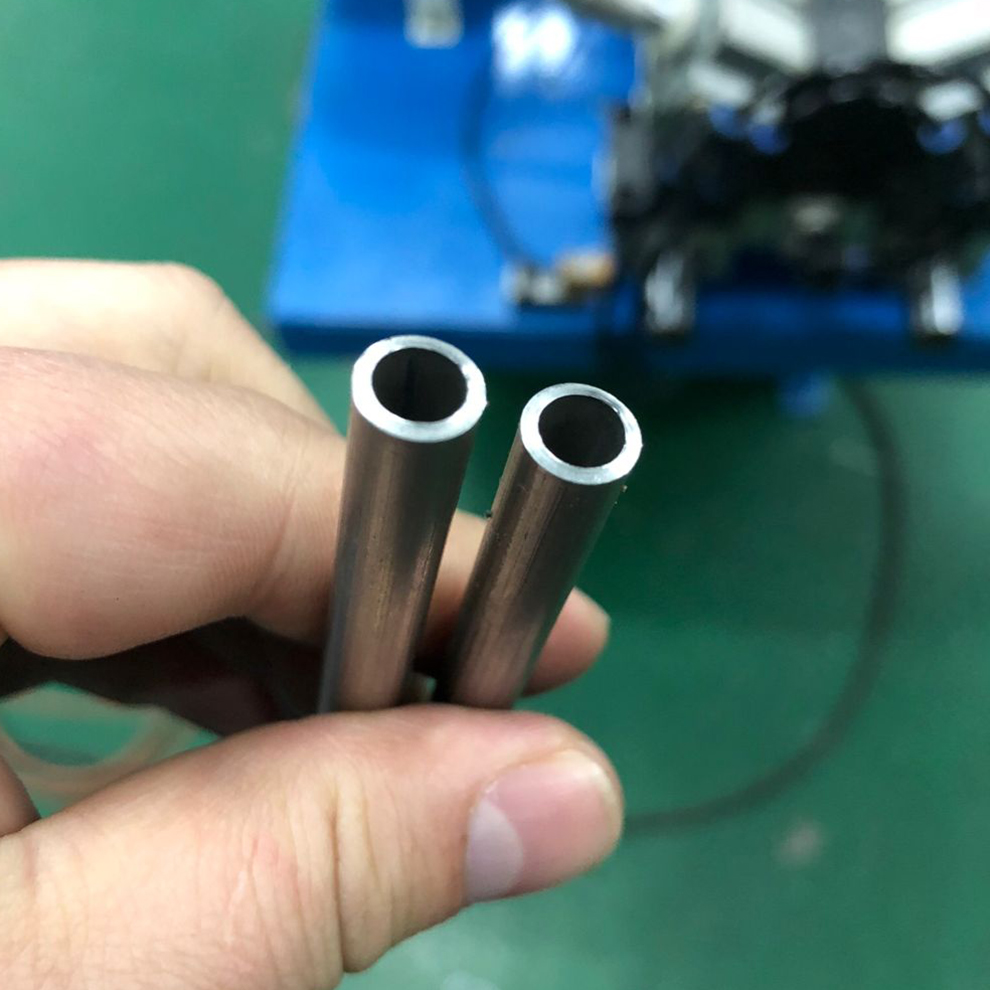

The chipless cutting process is a clean and precise method to customize tube lengths. By utilizing advanced cutting techniques, we achieve a smooth, burr-free finish while maintaining the exact diameter and wall thickness specifications. This process is not only efficient but also reduces waste, enhancing the overall sustainability of production. As custom manufacturers, we ensure that our straightening and cutting machines cater to specific industry standards and client demands. Whether it’s a matter of handling various diameters or constructing with specific wall thicknesses, we offer versatile solutions that integrate seamlessly into the production workflow.
Parameter
Parameter | Data | |
|---|---|---|
| Wire Material | Carbon steel wire | |
| Wire Diameter | 1.1-1.5mm (Customized) | |
| Cutting Length | 100-5000mm | |
| Work Speed | 0~150m/min, adjustable by Inverter | |
| Cutting Tolerance | +/-0.5mm/1m | |
Parameter | Data | |
|---|---|---|
| Control System | PLC control / HMI | |
| Motor Power | 1.50KW | |
| Electric System | 380V, 50Hz, 3Phae (Customized) | |
| Dimension | 1700 x 750 x 1350 mm (main machine) | |
| Weight | 860 KG | |
Features
BOBO Machine’s advanced solution delivers burr-free, chip-free processing of carbon steel/Bundy tubes (Ø1.1–1.5mm customizable), achieving ±0.5mm/m length tolerance at 150m/min max speed. Engineered for automotive fuel lines, refrigeration tubing, and hydraulic systems, this PLC-controlled system combines zero-material-waste cutting with ≤0.05mm concentricity straightening in a compact 1.7×0.75m footprint.
Adaptive Precision Straightening
Multi-axis straightening wheels correct coiled/bent tubes to ≤0.05mm concentricity via force-controlled alignment. Handles 1–5m cutting lengths while preserving wall integrity for leak-proof brazing/welding.
Servo-Driven Chipless Cutting Efficiency
Inverter-regulated feed (0–150m/min) pairs with non-rotational blade tech for burr-free ends in ≤1s cycles. Maintains ر0.01mm diameter tolerance without secondary deburring.
Rapid-Change Material Agility
Tool-less adjustments switch between carbon steel/Bundy/clad tubes in <15 minutes. HMI presets store recipes for wall thicknesses from 0.2–1.2mm (5x throughput vs. manual setups).
Lean-Ready Production Architecture
380V/1.5kW direct-drive motor with <860kg mass enables floor-space optimization. IP54-rated PLC withstands dusty/humid environments.
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
