Tube Mill Reducing Machine BTM-8
High frequency stepless speed.
Quality work for very details for long term service.
Friendly operation and easy maintenance.
Overload protection and human protection.

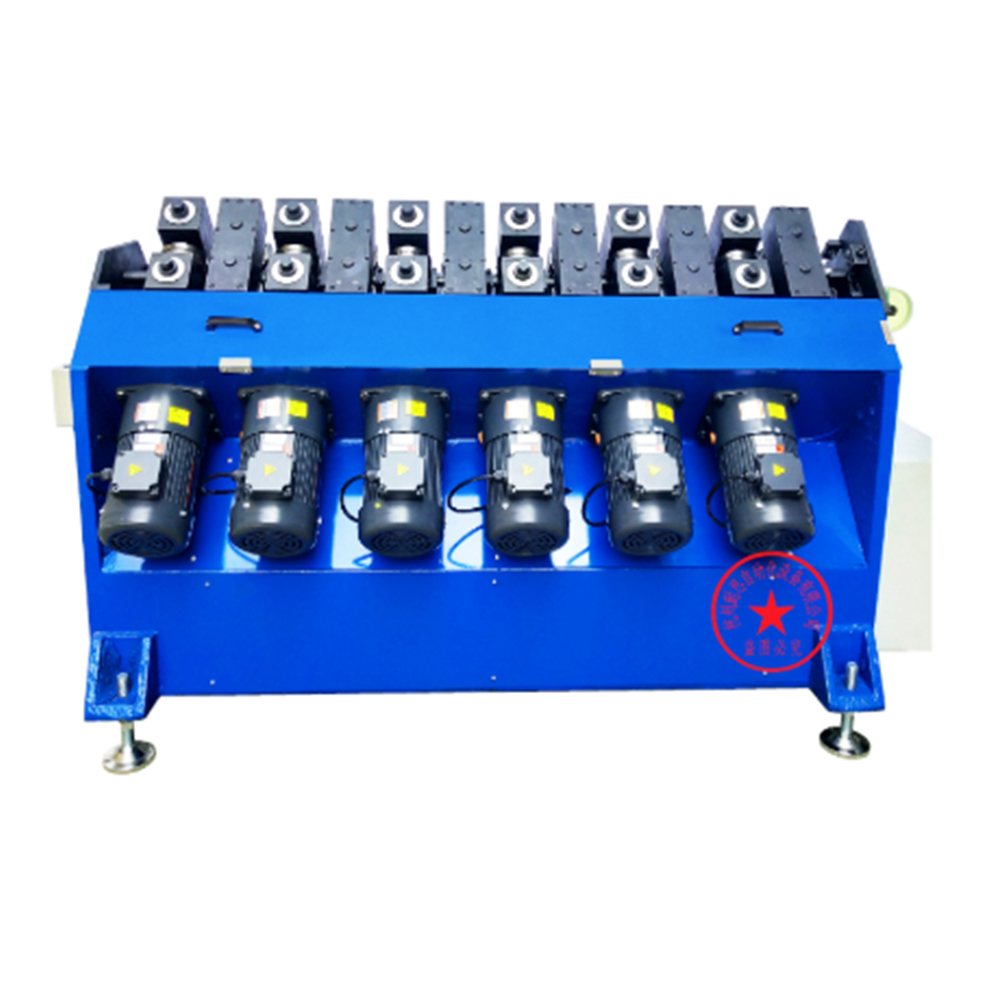

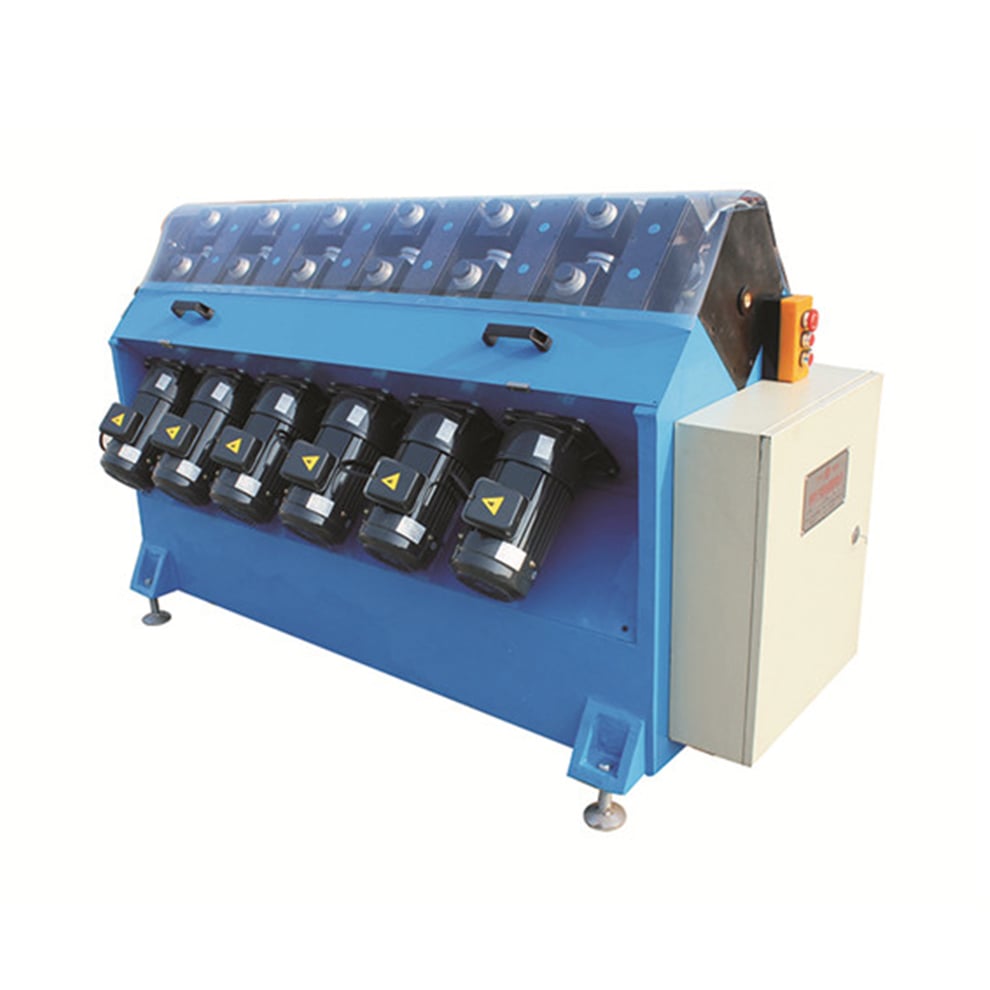

The tube mill reducing machine is work for tubular heaters’ reducing.It adopts 8-12 groups rollers with separated motors, according to different diameter ranges.The frame works made by die casting, motors are quality brand, reducing rollers are special steel after heat-treatment for long term services and stable performance.
Parameter
Specification | Quan | |
|---|---|---|

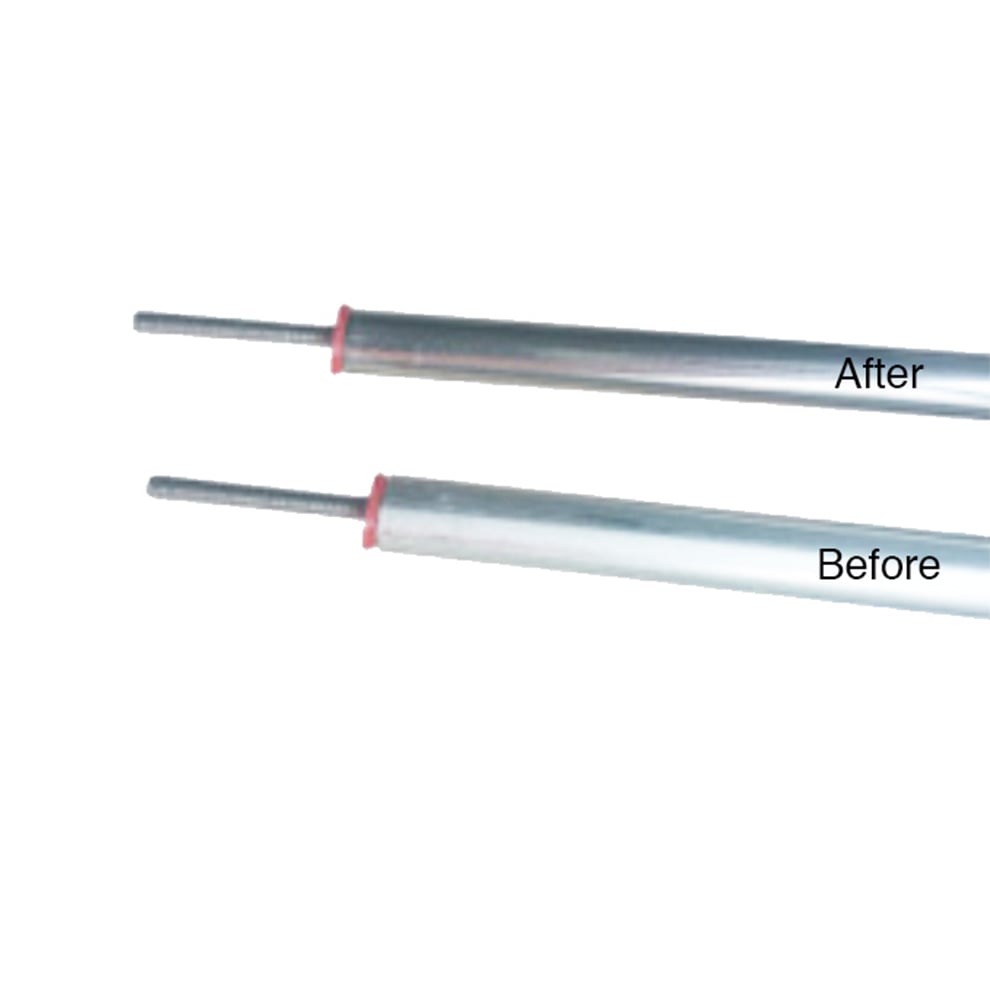

| Tube diameter before reducing | 6-10mm | |
| Tube diameter after reducing | 5.2-8mm | |
| Tubing length | 1000mm before reducing | |
| Linearity | 0.25 | |
| Circularity | +/-0.05mm | |
Specification | Quan | |
|---|---|---|
| Power | 6kw | |
| Voltage | 380v 50hz 3ph or free customization | |
| Dimension | 1100x1000x1150mm | |
| Weight | 1500kg | |
Application
Filter Dryer Line
Mesabi Tube Line
Pancake Coil Line
FAQ
Yes, the cooperation support will not end after waranty period. But the price of component for replacement should be at cost price, while in waranty period this price is free. In addition, if you offer a new order of equipment, the price could be communicated.
All 11 Types of Delivery Terms Accepted: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
Yes, we could provide private label or white label services. Customization services are available according to your demands.
Yes. We provide on-site set up services. install, commissioning, calibration and debugging services are offered by our engineers. You can send us your lead time demands and we offer you ideal solusions.
Other than tube processing machines, we also provide fin and finned tube processing machines,including fin making machines andfinned tube processing machines.
